Description
Brand - IKO
Item Number - NART 5 UUR IKO
Also Known As - NART5UUR
Category - Non-Separable Roller Followers (High Carbon Steel Made)
Type - Sealed Type (Crowned Outer Ring with Cage)
Shaft Diameter (mm) - 5

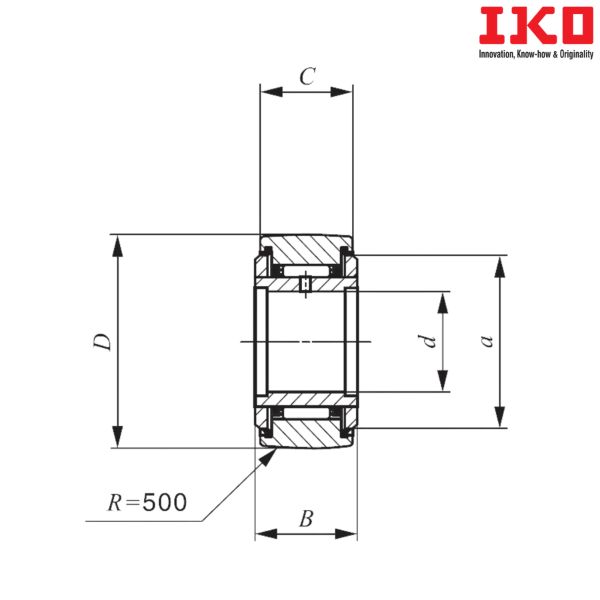

Bore Diameter (d) mm - 5
Outer Diameter (D) mm - 16
Width (B) mm - 12
Boundary dimension (C) mm - 11
Boundary dimension (a) mm - 12
Basic Dynamic Load Rating (C) N - 3650
Basic Static Load Rating (C0) N - 3680
Maximum allowable static load (N) - 3680
Shield Type Bearing with Crowned Outer Ring (With Cage) - NART 5 R
Weight (kg) - 0.0145
Suffix Description :
R - With Crowned Outer Ring
U - Rubber Seals at Each Side

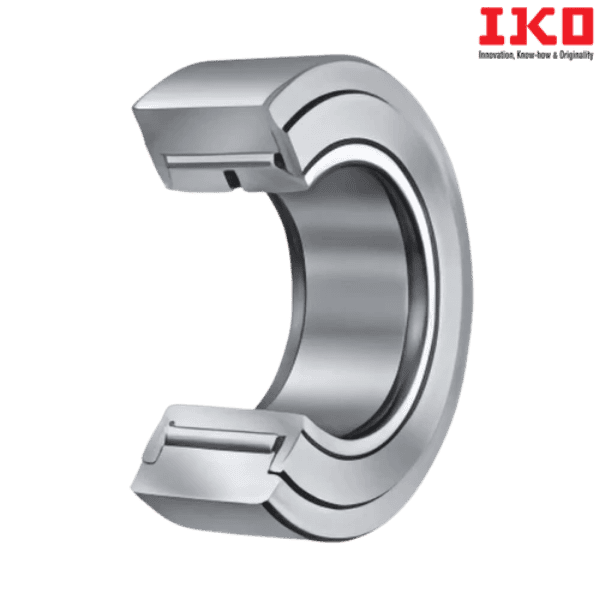

** Images are for representation purposes only
