Description
Brand - IKO
Item Number - NART 5 FR IKO
Also Known As - NART5FR
Category - Non-Separable Roller Followers (Stainless Steel Made) With Cage/With Inner Ring
Type - Shield Type
Shaft Diameter (mm) - 5
Bore Diameter (d) mm - 5
Outer Diameter (D) mm - 16
Width (B) mm - 12
Boundary dimension (C) mm - 11
Boundary dimension (a) mm - 12
Basic Dynamic Load Rating (C) N - 2930
Basic Static Load Rating (C0) N - 2920
Maximum allowable static load (N) - 2920
Sealed Type Bearing - NART 5 FUUR
Weight (kg) - 0.013
Suffix Description :
F - Stainless Steel
R - With Crowned Outer Ring

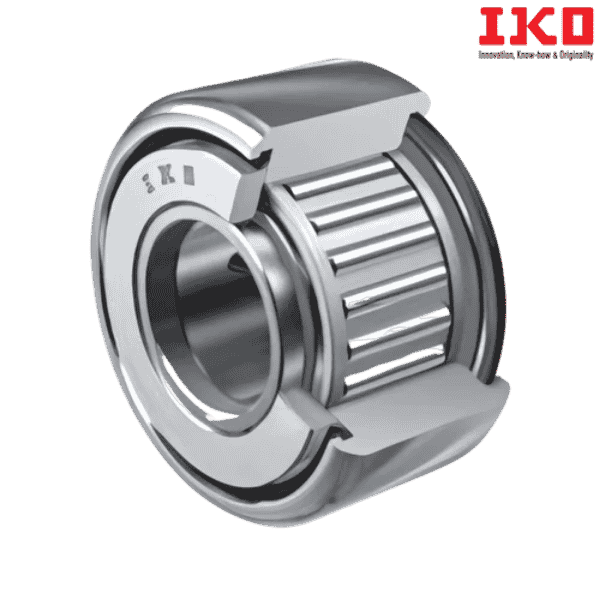

** Images are for representation purposes only
