Description
Brand - IKO
Item Number - NART 45 VUUR IKO
Also Known As - NART45VUUR
Category - Non-Separable Roller Followers (High Carbon Steel Made)
Type - Sealed Type (Crowned Outer Ring with Full Complement)
Shaft Diameter (mm) - 45

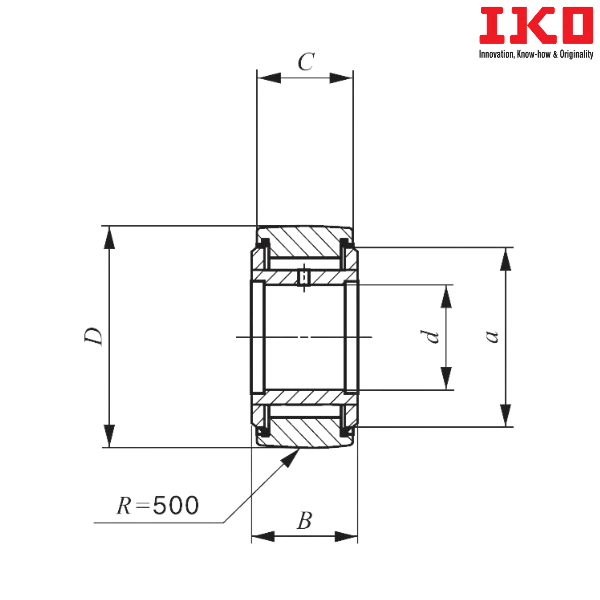

Bore Diameter (d) mm - 45
Outer Diameter (D) mm - 85
Width (B) mm - 32
Boundary dimension (C) mm - 30
Boundary dimension (a) mm - 66.5
Basic Dynamic Load Rating (C) N - 80300
Basic Static Load Rating (C0) N - 181000
Maximum allowable static load (N) - 181000
Shield Type Bearing with Crowned Outer Ring (Full Complement) - NART 45 VR
Weight (kg) - 0.935
Suffix Description :
R - With Crowned Outer Ring
U - Rubber Seals at Each Side
V - With Full Complement of Rolling Elements
** Images are for representation purposes only
