Description
Brand - IKO
Item Number - NART 40 R IKO
Also Known As - NART40R
Category - Non-Separable Roller Followers (High Carbon Steel Made)
Type - Shield Type (Crowned Outer Ring with Cage)
Shaft Diameter (mm) - 40

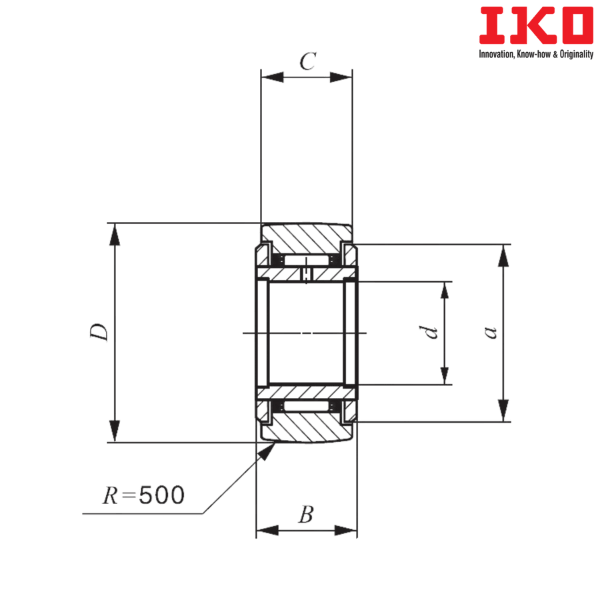

Bore Diameter (d) mm - 40
Outer Diameter (D) mm - 80
Width (B) mm - 32
Boundary dimension (C) mm - 30
Boundary dimension (a) mm - 61.5
Basic Dynamic Load Rating (C) N - 44900
Basic Static Load Rating (C0) N - 81500
Maximum allowable static load (N) - 81500
Sealed Type Bearing with Crowned Outer Ring (With Cage) - NART 40 UUR
Weight (kg) - 0.845
Suffix Description :
R - With Crowned Outer Ring
** Images are for representation purposes only
