Description
Brand - IKO
Item Number - NART 35 VUUR IKO
Also Known As - NART35VUUR
Category - Non-Separable Roller Followers (High Carbon Steel Made)

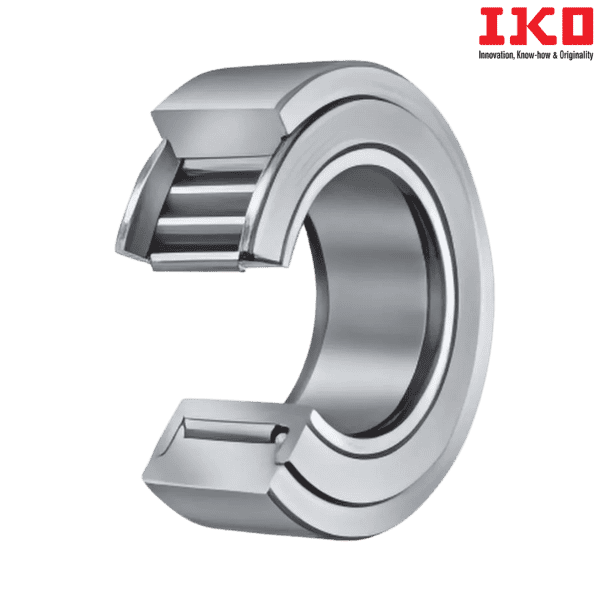

Type - Sealed Type (Crowned Outer Ring with Full Complement)

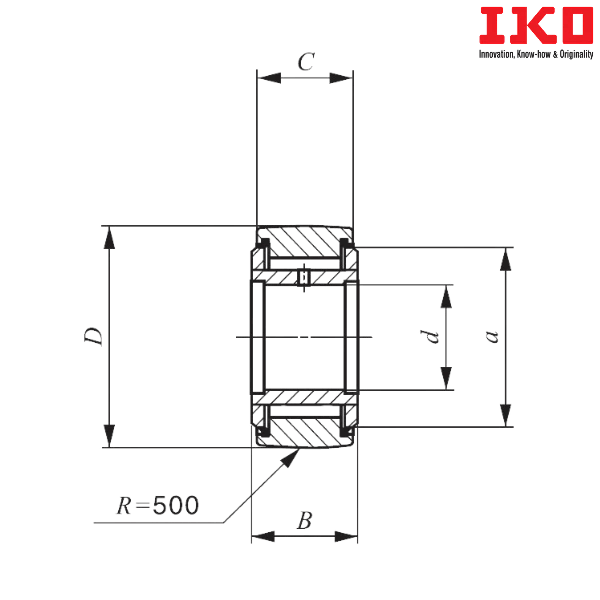

Shaft Diameter (mm) - 35
Bore Diameter (d) mm - 35
Outer Diameter (D) mm - 72
Width (B) mm - 29
Boundary dimension (C) mm - 28
Boundary dimension (a) mm - 53.5
Basic Dynamic Load Rating (C) N - 63100
Basic Static Load Rating (C0) N - 121000
Maximum allowable static load (N) - 121000
Shield Type Bearing with Crowned Outer Ring (Full Complement) - NART 35 VR
Weight (kg) - 0.655
Suffix Description :
R - With Crowned Outer Ring
U - Rubber Seals at Each Side
V - With Full Complement of Rolling Elements
** Images are for representation purposes only
