Description
Brand - IKO
Item Number - NART 35 VR IKO
Also Known As - NART35VR
Category - Non-Separable Roller Followers (High Carbon Steel Made)
Type - Shield Type (Crowned Outer Ring with Full Complement)
Shaft Diameter (mm) - 35

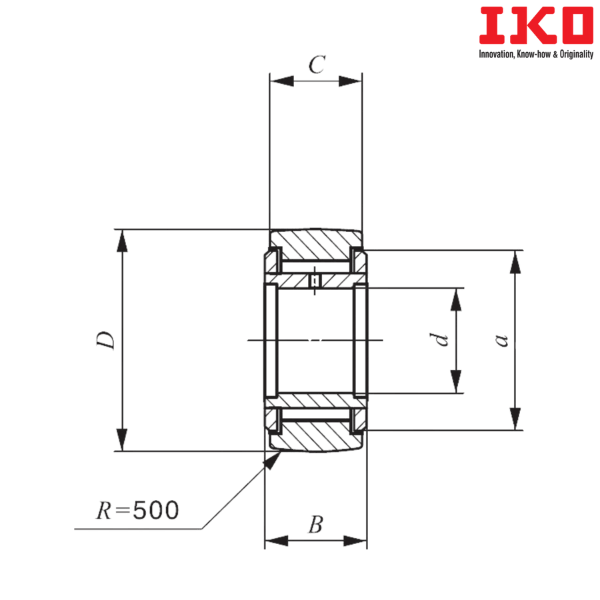

Bore Diameter (d) mm - 35
Outer Diameter (D) mm - 72
Width (B) mm - 29
Boundary dimension (C) mm - 28
Boundary dimension (a) mm - 53.5
Basic Dynamic Load Rating (C) N - 63100
Basic Static Load Rating (C0) N - 121000
Maximum allowable static load (N) - 121000
Shield Type Bearing with Crowned Outer Ring (Full Complement) - NART 35 VUUR
Weight (kg) - 0.655
Suffix Description :
R - With Crowned Outer Ring
V - With Full Complement of Rolling Elements

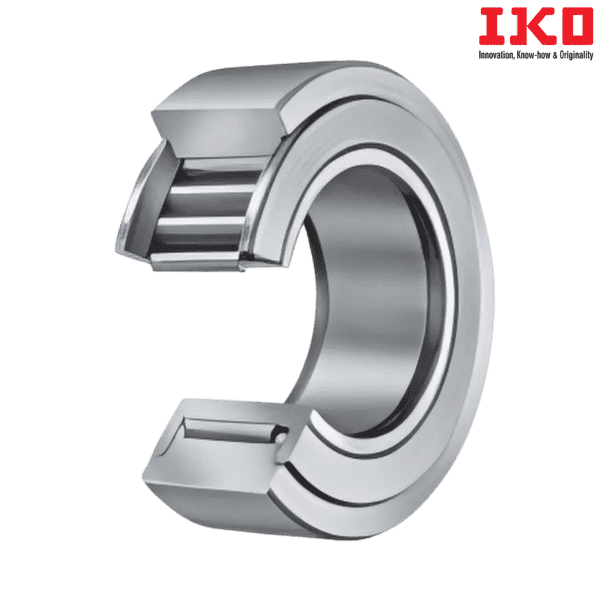

** Images are for representation purposes only
