Description
Brand - IKO
Item Number - NART 35 R IKO
Also Known As - NART35R
Category - Non-Separable Roller Followers (High Carbon Steel Made)
Type - Shield Type (Crowned Outer Ring with Cage)
Shaft Diameter (mm) - 35

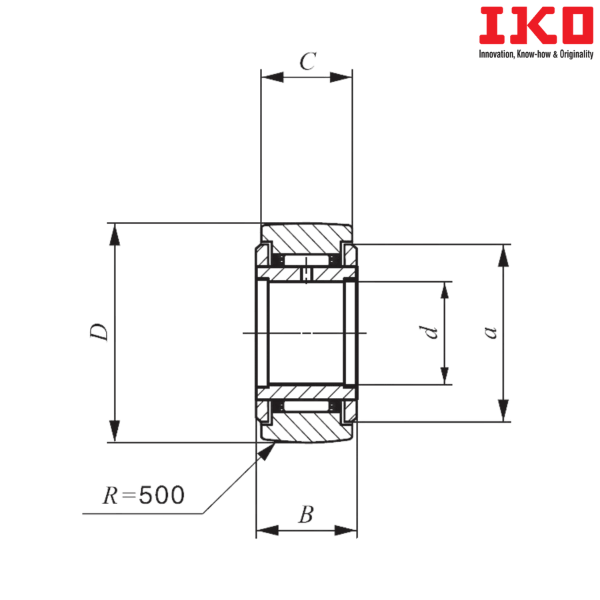

Bore Diameter (d) mm - 35
Outer Diameter (D) mm - 72
Width (B) mm - 29
Boundary dimension (C) mm - 28
Boundary dimension (a) mm - 53.5
Basic Dynamic Load Rating (C) N - 35700
Basic Static Load Rating (C0) N - 57400
Maximum allowable static load (N) - 57400
Sealed Type Bearing with Crowned Outer Ring (With Cage) - NART 35 UUR
Weight (kg) - 0.64
Suffix Description :
R - With Crowned Outer Ring
** Images are for representation purposes only
