Description
Brand - IKO
Item Number - NART 30 UUR IKO
Also Known As - NART30UUR

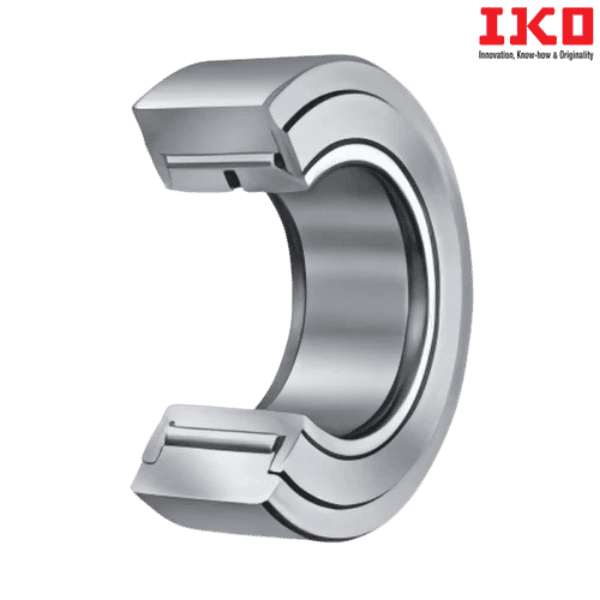

Category - Non-Separable Roller Followers (High Carbon Steel Made)
Type - Sealed Type (Crowned Outer Ring with Cage)
Shaft Diameter (mm) - 30

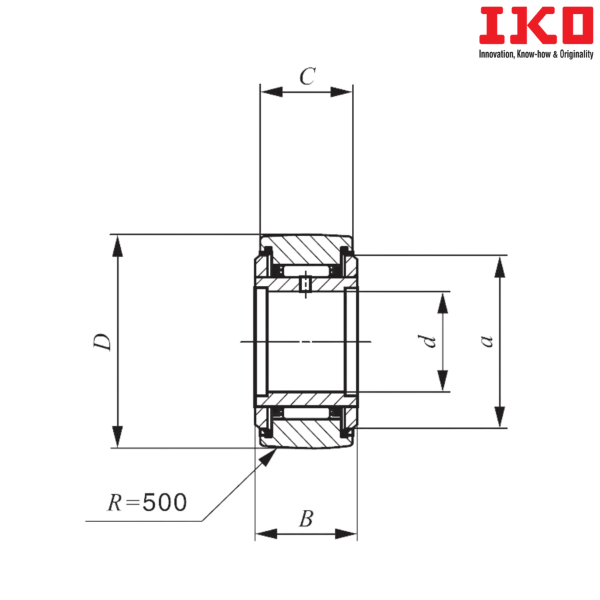

Bore Diameter (d) mm - 30
Outer Diameter (D) mm - 62
Width (B) mm - 29
Boundary dimension (C) mm - 28
Boundary dimension (a) mm - 50.5
Basic Dynamic Load Rating (C) N - 33600
Basic Static Load Rating (C0) N - 51400
Maximum allowable static load (N) - 51400
Shield Type Bearing with Crowned Outer Ring (With Cage) - NART 30 R
Weight (kg) - 0.47
Suffix Description :
R - With Crowned Outer Ring
U - Rubber Seals at Each Side
** Images are for representation purposes only
