Description
Brand - IKO
Item Number - NART 30 FUUR IKO
Also Known As - NART30FUUR
Category - Non-Separable Roller Followers (Stainless Steel Made) With Cage/With Inner Ring
Type - Sealed Type
Shaft Diameter (mm) - 30
Bore Diameter (d) mm - 30
Outer Diameter (D) mm - 62
Width (B) mm - 29

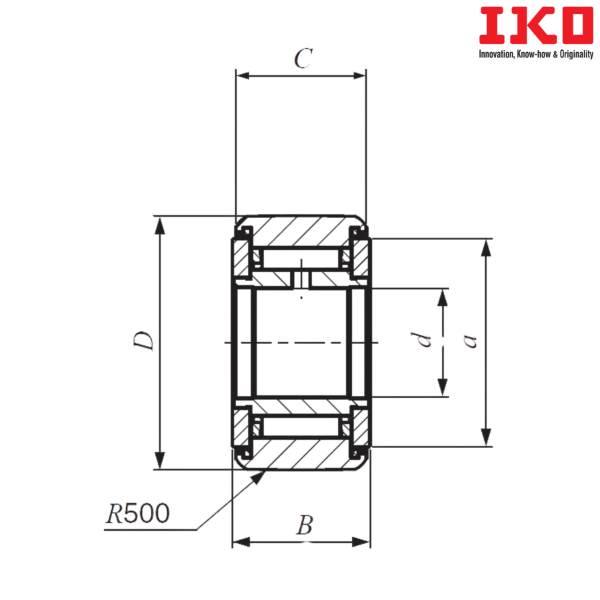

Boundary dimension (C) mm - 28
Boundary dimension (a) mm - 50
Basic Dynamic Load Rating (C) N - 26900
Basic Static Load Rating (C0) N - 41200
Maximum allowable static load (N) - 41200
Shield Type Bearing - NART 30 FR
Weight (kg) - 0.447
Suffix Description :
F - Stainless Steel
R - With Crowned Outer Ring
U - Rubber Seals at Each Side

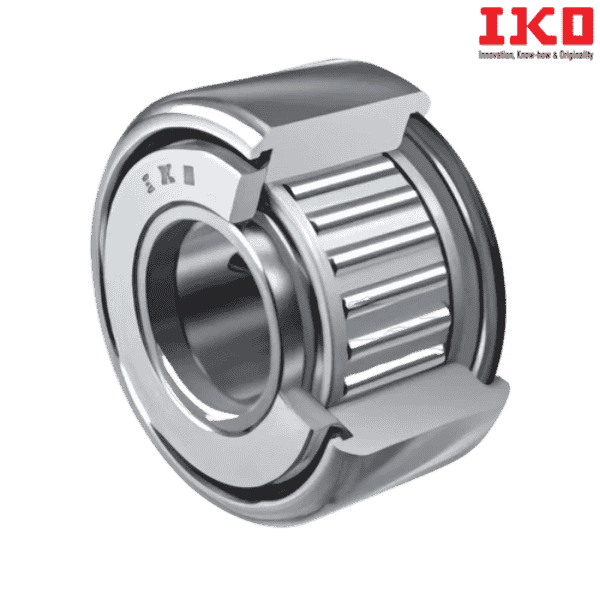

** Images are for representation purposes only
