Description
Brand - IKO
Item Number - NART 25 UUR IKO
Also Known As - NART25UUR
Category - Non-Separable Roller Followers (High Carbon Steel Made)
Type - Sealed Type (Crowned Outer Ring with Cage)

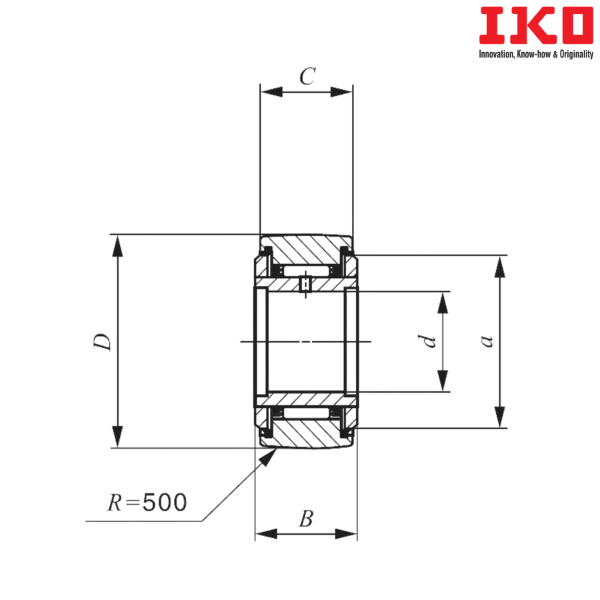

Shaft Diameter (mm) - 25
Bore Diameter (d) mm - 25
Outer Diameter (D) mm - 52
Width (B) mm - 25
Boundary dimension (C) mm - 24
Boundary dimension (a) mm - 43
Basic Dynamic Load Rating (C) N - 24700
Basic Static Load Rating (C0) N - 35400
Maximum allowable static load (N) - 35400
Shield Type Bearing with Crowned Outer Ring (With Cage) - NART 25 R
Weight (kg) - 0.285
Suffix Description :
R - With Crowned Outer Ring
U - Rubber Seals at Each Side
** Images are for representation purposes only
