Description
Brand - IKO
Item Number - NART 25 R IKO
Also Known As - NART25R
Category - Non-Separable Roller Followers (High Carbon Steel Made)
Type - Shield Type (Crowned Outer Ring with Cage)
Shaft Diameter (mm) - 25
Bore Diameter (d) mm - 25
Outer Diameter (D) mm - 52
Width (B) mm - 25
Boundary dimension (C) mm - 24
Boundary dimension (a) mm - 43
Basic Dynamic Load Rating (C) N - 24700
Basic Static Load Rating (C0) N - 35400
Maximum allowable static load (N) - 35400
Sealed Type Bearing with Crowned Outer Ring (With Cage) - NART 25 UUR
Weight (kg) - 0.285
Suffix Description :
R - With Crowned Outer Ring

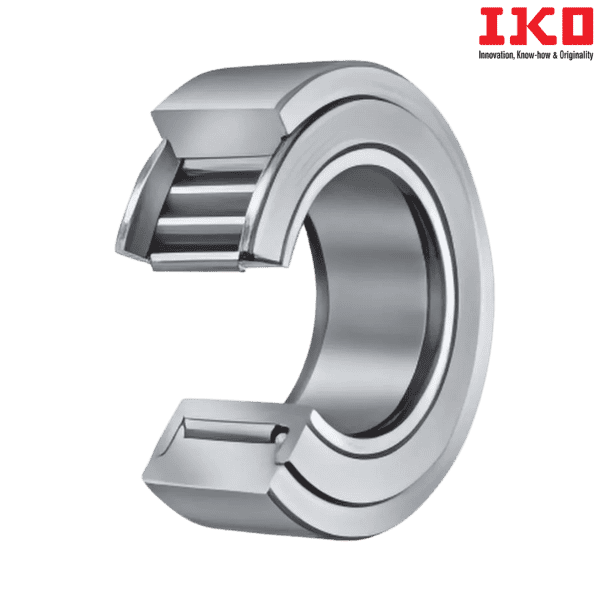

** Images are for representation purposes only
