Description
Brand - IKO
Item Number - NART 25 FUUR IKO
Also Known As - NART25FUUR
Category - Non-Separable Roller Followers (Stainless Steel Made) With Cage/With Inner Ring
Type - Sealed Type
Shaft Diameter (mm) - 25

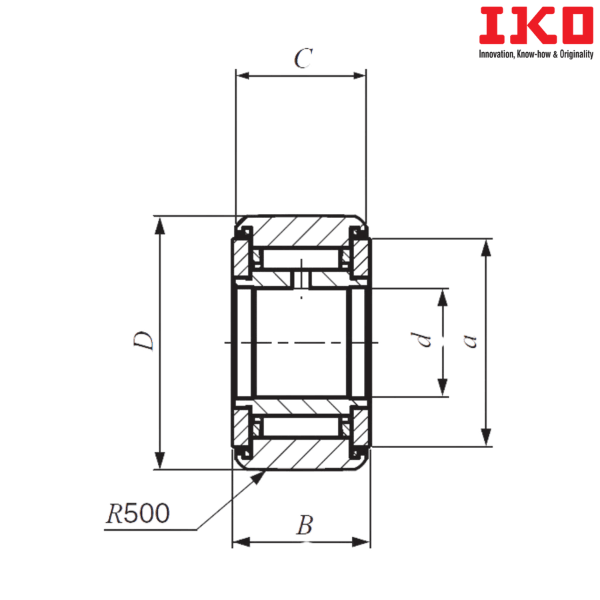

Bore Diameter (d) mm - 25
Outer Diameter (D) mm - 52
Width (B) mm - 25
Boundary dimension (C) mm - 24
Boundary dimension (a) mm - 43
Basic Dynamic Load Rating (C) N - 19800
Basic Static Load Rating (C0) N - 28300
Maximum allowable static load (N) - 28300
Shield Type Bearing - NART 25 FR
Weight (kg) - 0.269
Suffix Description :
F - Stainless Steel
R - With Crowned Outer Ring
U - Rubber Seals at Each Side

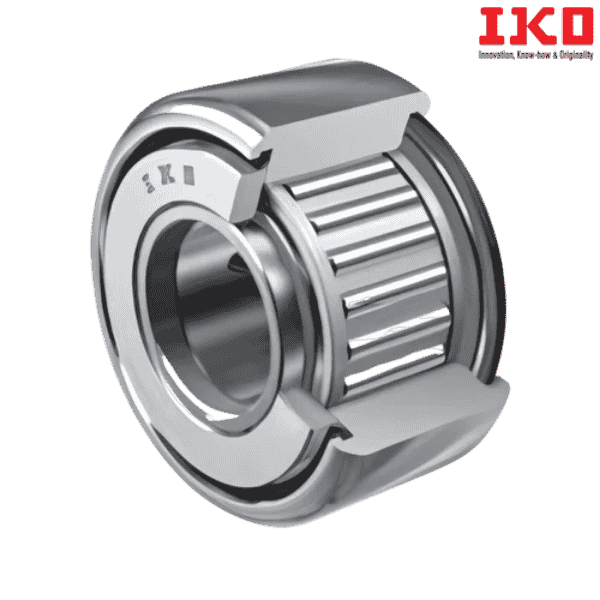

** Images are for representation purposes only
