Description
Brand - IKO
Item Number - NART 20 VR IKO
Also Known As - NART20VR
Category - Non-Separable Roller Followers (High Carbon Steel Made)
Type - Shield Type (Crowned Outer Ring with Full Complement)
Shaft Diameter (mm) - 20

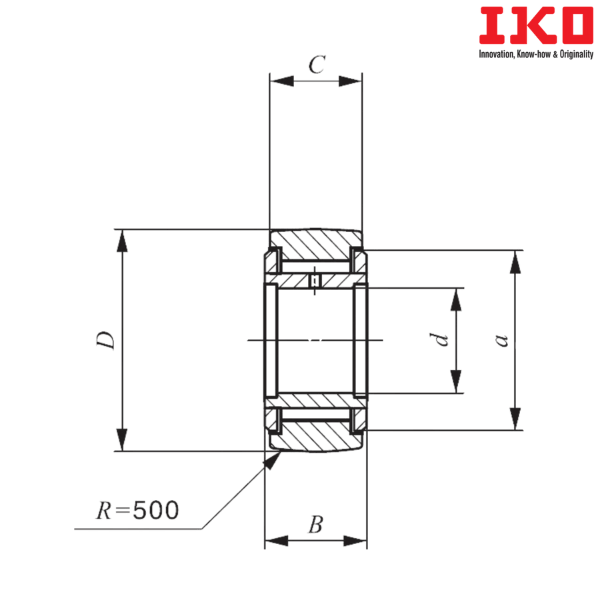

Bore Diameter (d) mm - 20
Outer Diameter (D) mm - 47
Width (B) mm - 25
Boundary dimension (C) mm - 24
Boundary dimension (a) mm - 38
Basic Dynamic Load Rating (C) N - 41600
Basic Static Load Rating (C0) N - 67300
Maximum allowable static load (N) - 67300
Shield Type Bearing with Crowned Outer Ring (Full Complement) - NART 20 VUUR
Weight (kg) - 0.255
Suffix Description :
R - With Crowned Outer Ring
V - With Full Complement of Rolling Elements
** Images are for representation purposes only
