Description
Brand - IKO
Item Number - NART 20 R IKO
Also Known As - NART20R
Category - Non-Separable Roller Followers (High Carbon Steel Made)
Type - Shield Type (Crowned Outer Ring with Cage)
Shaft Diameter (mm) - 20

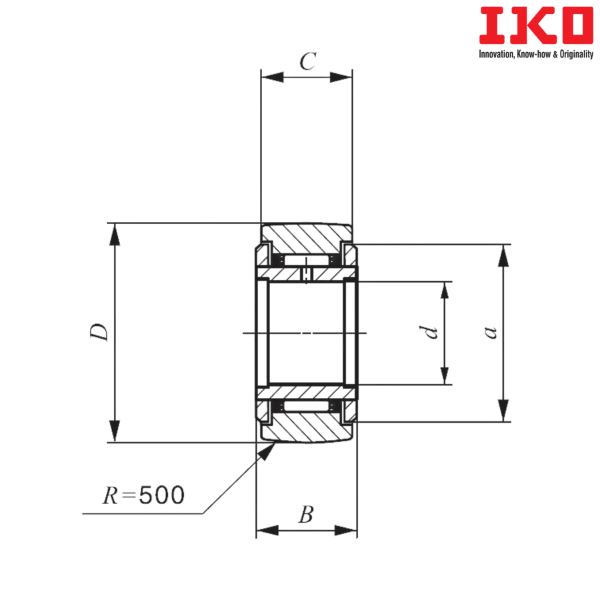

Bore Diameter (d) mm - 20
Outer Diameter (D) mm - 47
Width (B) mm - 25
Boundary dimension (C) mm - 24
Boundary dimension (a) mm - 38
Basic Dynamic Load Rating (C) N - 23000
Basic Static Load Rating (C0) N - 30700
Maximum allowable static load (N) - 30700
Sealed Type Bearing with Crowned Outer Ring (With Cage) - NART 20 UUR
Weight (kg) - 0.25
Suffix Description :
R - With Crowned Outer Ring
** Images are for representation purposes only
