Description

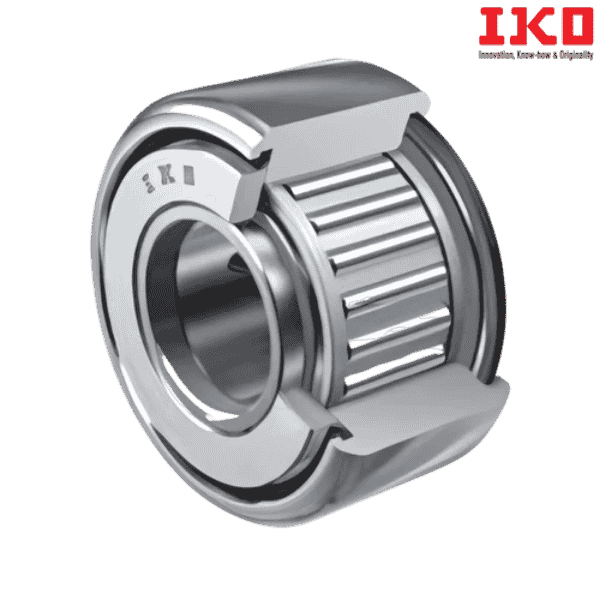

Brand - IKO
Item Number - NART 20 FUUR IKO
Also Known As - NART20FUUR
Category - Non-Separable Roller Followers (Stainless Steel Made) With Cage/With Inner Ring
Type - Sealed Type

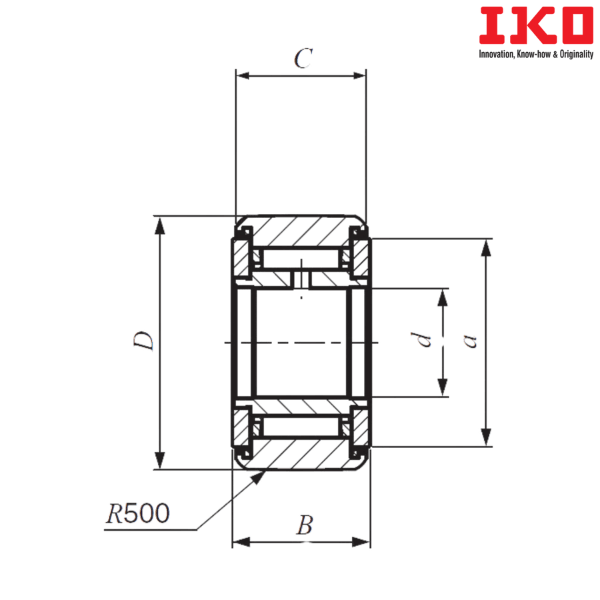

Shaft Diameter (mm) - 20
Bore Diameter (d) mm - 20
Outer Diameter (D) mm - 47
Width (B) mm - 25
Boundary dimension (C) mm - 24
Boundary dimension (a) mm - 36.5
Basic Dynamic Load Rating (C) N - 16500
Basic Static Load Rating (C0) N - 27700
Maximum allowable static load (N) - 27700
Shield Type Bearing - NART 20 FR
Weight (kg) - 0.241
Suffix Description :
F - Stainless Steel
R - With Crowned Outer Ring
U - Rubber Seals at Each Side
** Images are for representation purposes only
