Description
Brand - IKO
Item Number - NART 17 VR IKO
Also Known As - NART17VR
Category - Non-Separable Roller Followers (High Carbon Steel Made)
Type - Shield Type (Crowned Outer Ring with Full Complement)

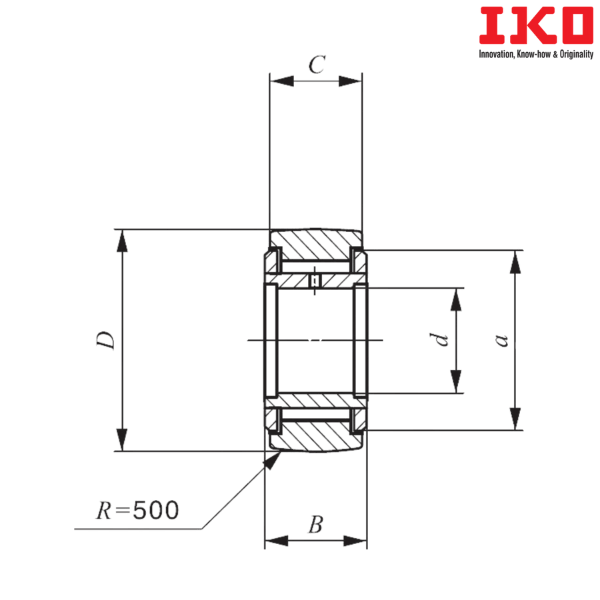

Shaft Diameter (mm) - 17
Bore Diameter (d) mm - 17
Outer Diameter (D) mm - 40
Width (B) mm - 21
Boundary dimension (C) mm - 20
Boundary dimension (a) mm - 32.5
Basic Dynamic Load Rating (C) N - 32000
Basic Static Load Rating (C0) N - 46300
Maximum allowable static load (N) - 33100
Shield Type Bearing with Crowned Outer Ring (Full Complement) - NART 17 VUUR
Weight (kg) - 0.155
Suffix Description :
R - With Crowned Outer Ring
V - With Full Complement of Rolling Elements
** Images are for representation purposes only
