Description
Brand - IKO
Item Number - NART 17 UUR IKO
Also Known As - NART17UUR
Category - Non-Separable Roller Followers (High Carbon Steel Made)
Type - Sealed Type (Crowned Outer Ring with Cage)
Shaft Diameter (mm) - 17

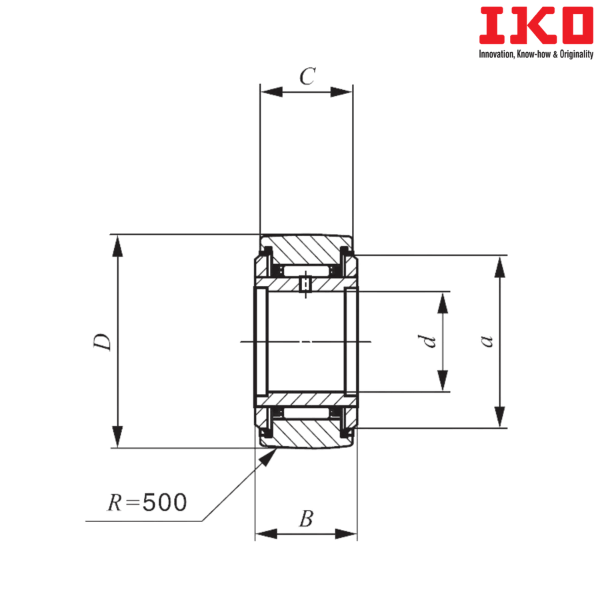

Bore Diameter (d) mm - 17
Outer Diameter (D) mm - 40
Width (B) mm - 21
Boundary dimension (C) mm - 20
Boundary dimension (a) mm - 32.5
Basic Dynamic Load Rating (C) N - 17600
Basic Static Load Rating (C0) N - 21000
Maximum allowable static load (N) - 21000
Shield Type Bearing with Crowned Outer Ring (With Cage) - NART 17 R
Weight (kg) - 0.149
Suffix Description :
R - With Crowned Outer Ring
U - Rubber Seals at Each Side

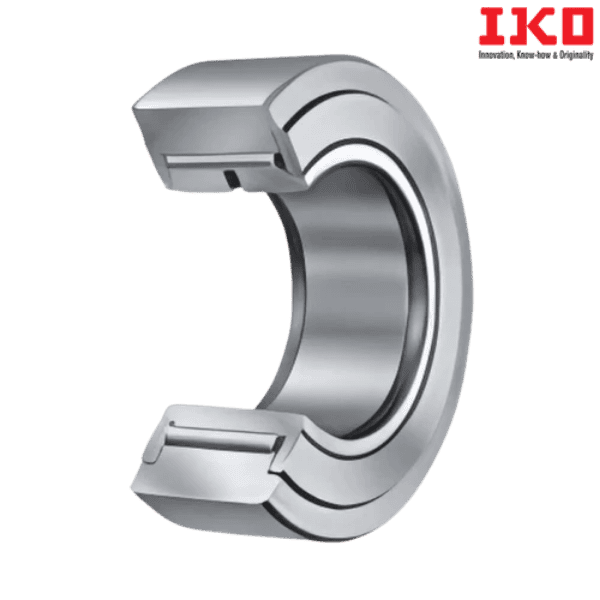

** Images are for representation purposes only
