Description
Brand - IKO
Item Number - NART 17 FUUR IKO
Also Known As - NART17FUUR

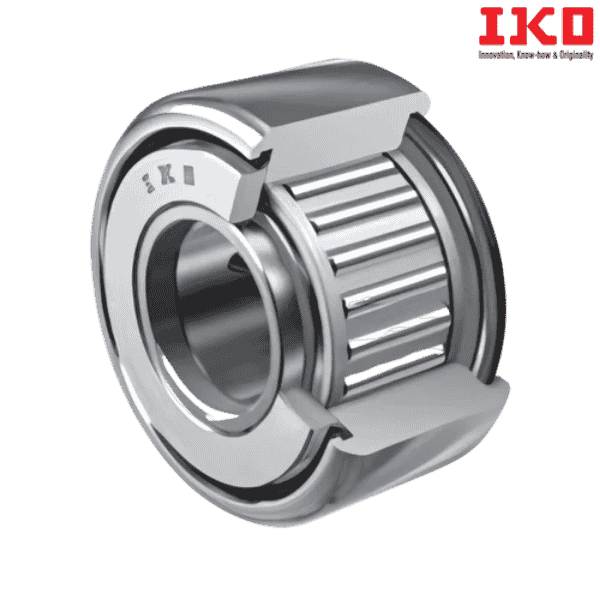

Category - Non-Separable Roller Followers (Stainless Steel Made) With Cage/With Inner Ring
Type - Sealed Type

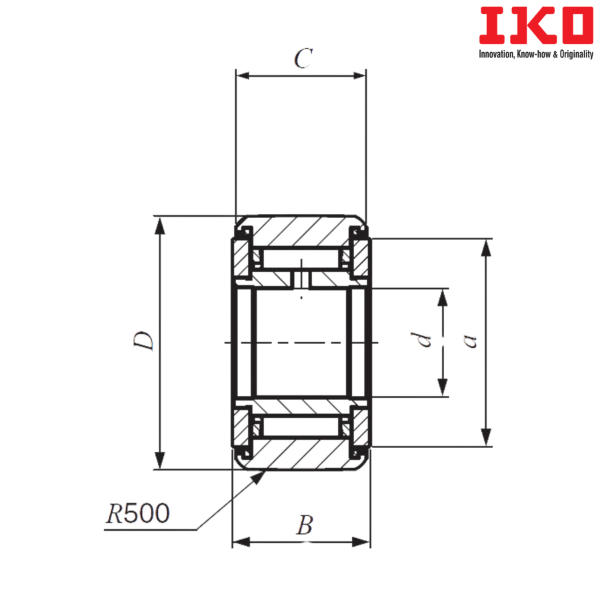

Shaft Diameter (mm) - 17
Bore Diameter (d) mm - 17
Outer Diameter (D) mm - 40
Width (B) mm - 21
Boundary dimension (C) mm - 20
Boundary dimension (a) mm - 31
Basic Dynamic Load Rating (C) N - 11800
Basic Static Load Rating (C0) N - 20200
Maximum allowable static load (N) - 20200
Shield Type Bearing - NART 17 FR
Weight (kg) - 0.146
Suffix Description :
F - Stainless Steel
R - With Crowned Outer Ring
U - Rubber Seals at Each Side
** Images are for representation purposes only
