Description
Brand - IKO
Item Number - NART 15 R IKO
Also Known As - NART15R
Category - Non-Separable Roller Followers (High Carbon Steel Made)
Type - Shield Type (Crowned Outer Ring with Cage)
Shaft Diameter (mm) - 15

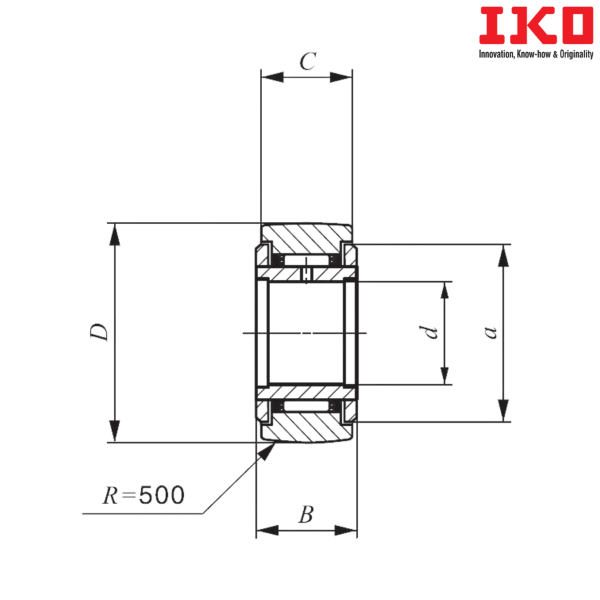

Bore Diameter (d) mm - 15
Outer Diameter (D) mm - 35
Width (B) mm - 19
Boundary dimension (C) mm - 18
Boundary dimension (a) mm - 29
Basic Dynamic Load Rating (C) N - 13700
Basic Static Load Rating (C0) N - 16400
Maximum allowable static load (N) - 16400
Sealed Type Bearing with Crowned Outer Ring (With Cage) - NART 15 UUR
Weight (kg) - 0.102
Suffix Description :
R - With Crowned Outer Ring
** Images are for representation purposes only
