Description
Brand - IKO
Item Number - NART 15 FUUR IKO
Also Known As - NART15FUUR

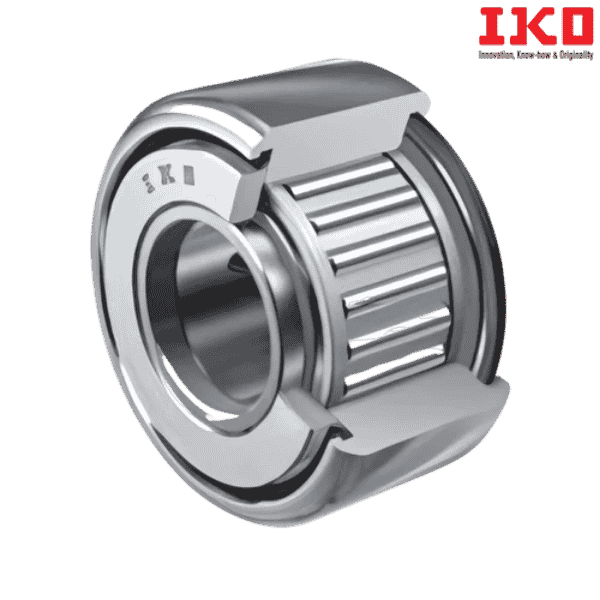

Category - Non-Separable Roller Followers (Stainless Steel Made) With Cage/With Inner Ring
Type - Sealed Type
Shaft Diameter (mm) - 15

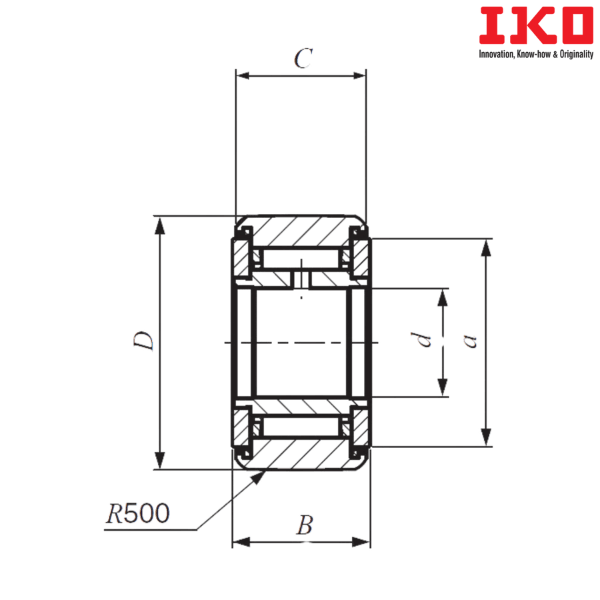

Bore Diameter (d) mm - 15
Outer Diameter (D) mm - 35
Width (B) mm - 19
Boundary dimension (C) mm - 18
Boundary dimension (a) mm - 27.5
Basic Dynamic Load Rating (C) N - 9620
Basic Static Load Rating (C0) N - 14700
Maximum allowable static load (N) - 14700
Shield Type Bearing - NART 15 FR
Weight (kg) - 0.099
Suffix Description :
F - Stainless Steel
R - With Crowned Outer Ring
U - Rubber Seals at Each Side
** Images are for representation purposes only
