Description
Brand - IKO
Item Number - NART 12 R IKO
Also Known As - NART12R
Category - Non-Separable Roller Followers (High Carbon Steel Made)
Type - Shield Type (Crowned Outer Ring with Cage)

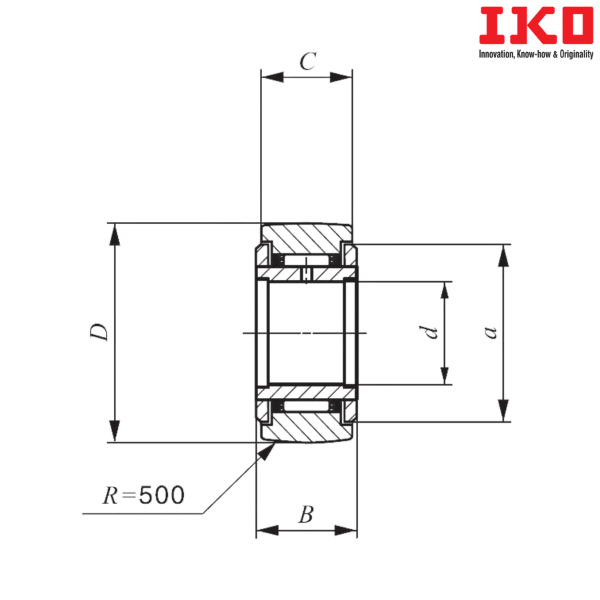

Shaft Diameter (mm) - 12
Bore Diameter (d) mm - 12
Outer Diameter (D) mm - 32
Width (B) mm - 15
Boundary dimension (C) mm - 14
Boundary dimension (a) mm - 25.5
Basic Dynamic Load Rating (C) N - 8580
Basic Static Load Rating (C0) N - 8470
Maximum allowable static load (N) - 8470
Sealed Type Bearing with Crowned Outer Ring (With Cage) - NART 12 UUR
Weight (kg) - 0.071
Suffix Description :
R - With Crowned Outer Ring
** Images are for representation purposes only
