Description
Brand - IKO
Item Number - NART 12 FUUR IKO
Also Known As - NART12FUUR
Category - Non-Separable Roller Followers (Stainless Steel Made) With Cage/With Inner Ring
Type - Sealed Type
Shaft Diameter (mm) - 12

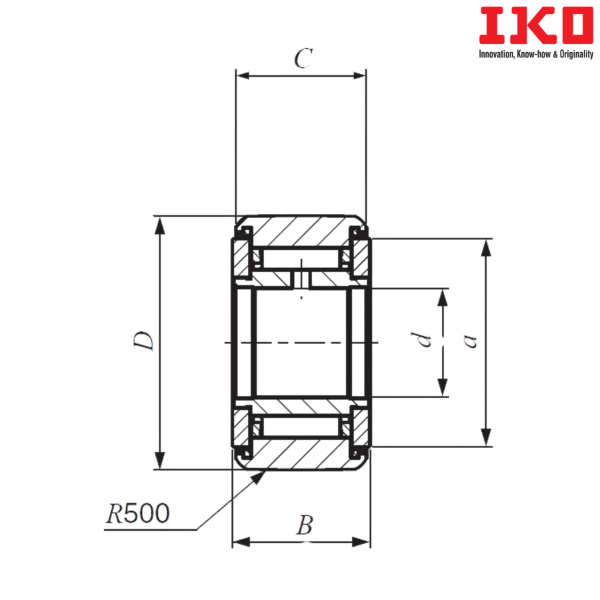

Bore Diameter (d) mm - 12
Outer Diameter (D) mm - 32
Width (B) mm - 15
Boundary dimension (C) mm - 14
Boundary dimension (a) mm - 25.5
Basic Dynamic Load Rating (C) N - 6510
Basic Static Load Rating (C0) N - 8400
Maximum allowable static load (N) - 8400
Shield Type Bearing - NART 12 FR
Weight (kg) - 0.067
Suffix Description :
F - Stainless Steel
R - With Crowned Outer Ring
U - Rubber Seals at Each Side

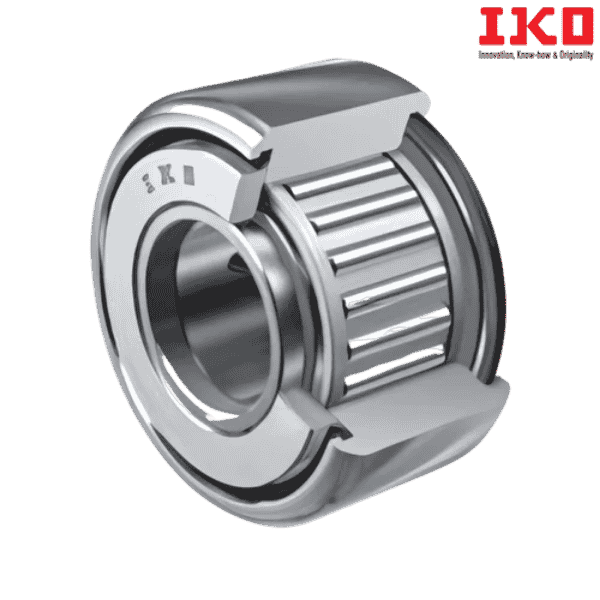

** Images are for representation purposes only
