Description
Brand - IKO
Item Number - NART 10 VUUR IKO
Also Known As - NART10VUUR
Category - Non-Separable Roller Followers (High Carbon Steel Made)
Type - Sealed Type (Crowned Outer Ring with Full Complement)
Shaft Diameter (mm) - 10
Bore Diameter (d) mm - 10
Outer Diameter (D) mm - 30
Width (B) mm - 15
Boundary dimension (C) mm - 14
Boundary dimension (a) mm - 23.5
Basic Dynamic Load Rating (C) N - 15600
Basic Static Load Rating (C0) N - 18100
Maximum allowable static load (N) - 17500
Shield Type Bearing with Crowned Outer Ring (Full Complement) - NART 10 VR
Weight (kg) - 0.0665
Suffix Description :
R - With Crowned Outer Ring
U - Rubber Seals at Each Side
V - With Full Complement of Rolling Elements

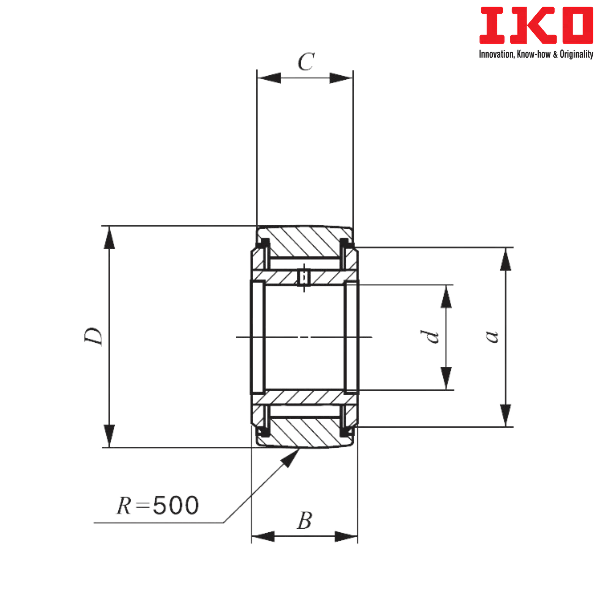

** Images are for representation purposes only
