NAID 025 NADELLA

Brand - NADELLA
Item Number - NAID 025 NADELLA
Category - Wiper

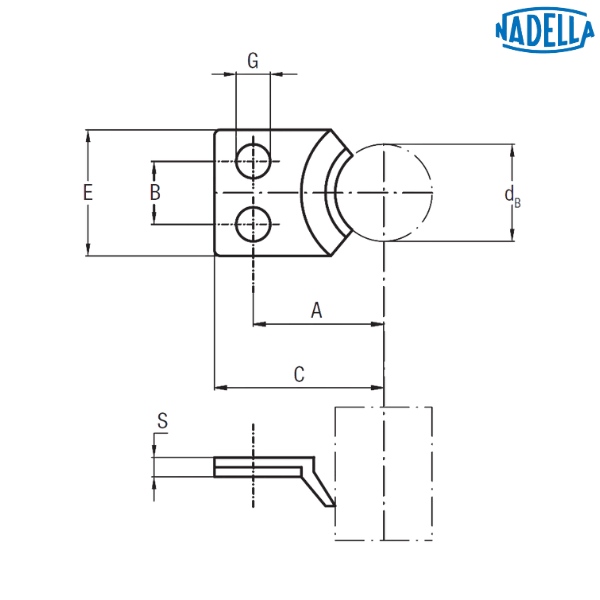

Principal Dimensions & Load Ratings (Metric):
Dimension (dB) - 25 mm
Dimension (E) - 28 mm
Dimension (C) - 37.5 mm
Dimension (A) - 30.5 mm
Dimension (B) - 18 mm
Dimension (G) - 4.5 mm
Dimension (S) - 3 mm
Suggested Combinations - DC 25.95

Description of Prefix:
NAID - Wipers for C and DC rails of Base-Line system

♦ ♦ Images are for representation purposes only
