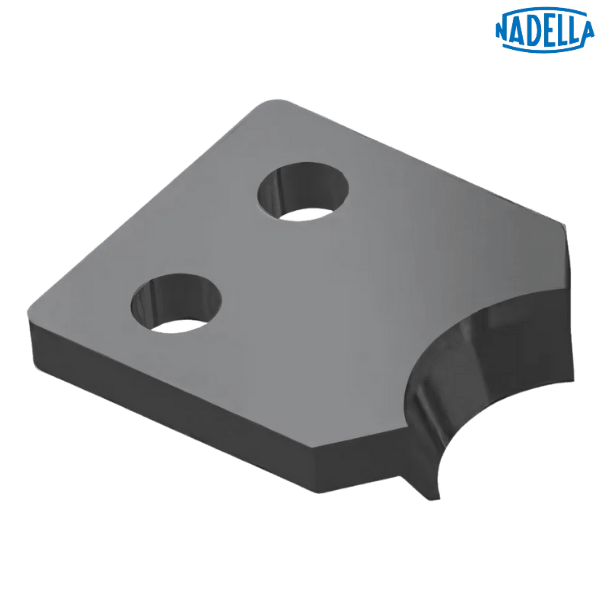

NAID 016 NADELLA

Brand - NADELLA
Item Number - NAID 016 NADELLA
Category - Wiper

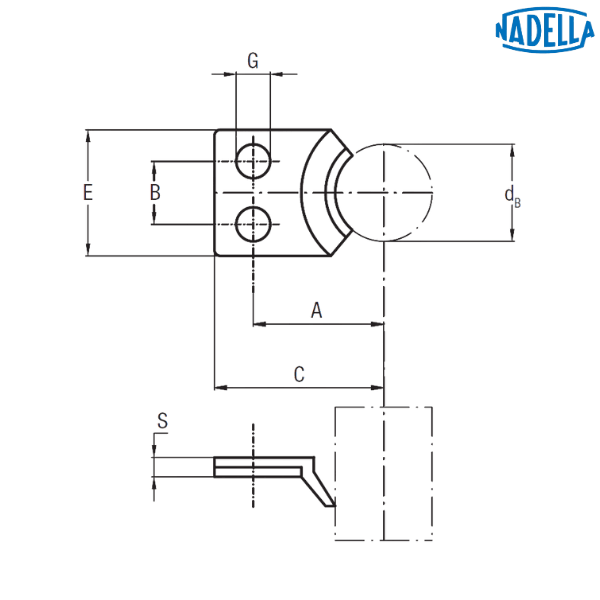

Principal Dimensions & Load Ratings (Metric):
Dimension (dB) - 16 mm
Dimension (E) - 20 mm
Dimension (C) - 26.5 mm
Dimension (A) - 20.5 mm
Dimension (B) - 10 mm
Dimension (G) - 4.5 mm
Dimension (S) - 3 mm
Suggested Combinations - DC 16.80

Description of Prefix:
NAID - Wipers for C and DC rails of Base-Line system

♦ ♦ Images are for representation purposes only
