Description

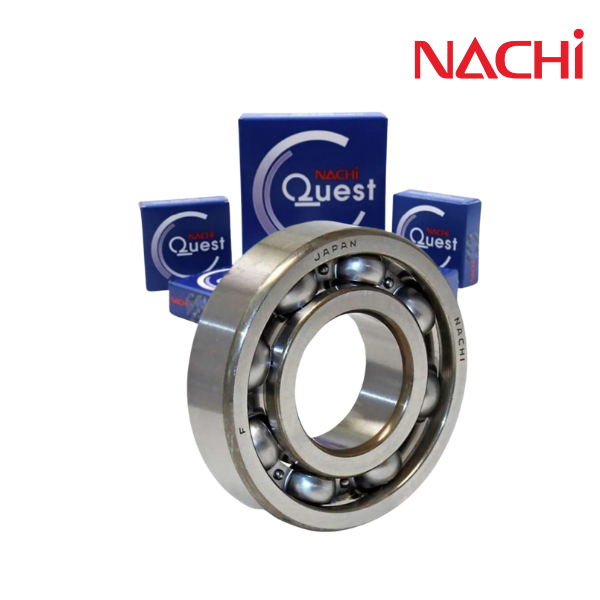

Brand - Nachi
Item Number - 22BC05S8NC2 Nachi
Also known as - 61801
Category - Deep Groove Ball Bearings Single Row
Inner (d) MM - 22
Outer (D) MM - 56
Width (B) MM - 14
Weight (kg) - 0.154
Bore - C - Cylindrical Bore
Seal - No Seal
Cage Type - S - Steel or Standard Cage
External Modification - No External Modification
Radial Internal Play - C2 Internal Play (Less than Cn)
Precision - Standard Precision
Lubrication - Standard Lubrication
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Special Treatment - No Special Treatment
