NA759SW/752D TIMKEN

Brand - TIMKEN
Item Number - NA759SW/752D TIMKEN
Also Known As - NA759SW - 752D
Category - Double Row Tapered Roller Bearing (TNASW Type)

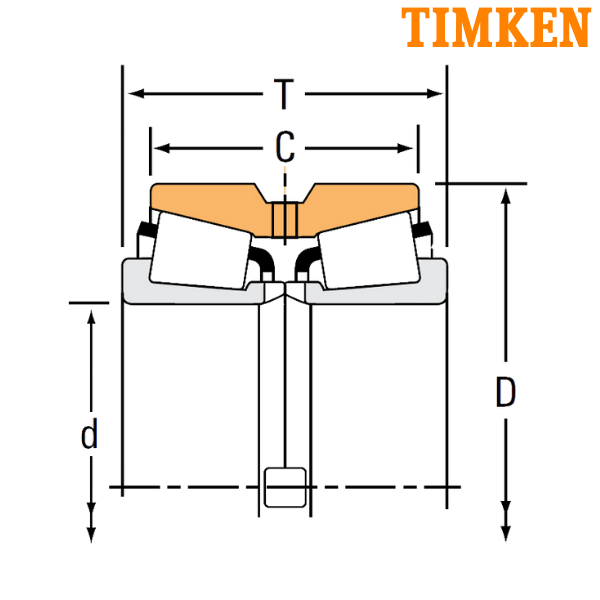

Bore Diameter (d) mm - 88.9
Bore Diameter (d) inch - 3.5
Outer Diameter (D) mm - 161.925
Outer Diameter (D) inch - 6.375
Width (T) mm - 104.775
Width (T) inch - 4.125
Double Outer Ring Width (C) mm - 85.725
Double Outer Ring Width (C) inch - 3.375
Dynamic Load Rating (C1) N - 570000
Dynamic Load Rating (C1) lbf - 128000
Factor (e) - 0.34
Factor (Y1) - 1.98
Factor (Y2) - 2.95
Dynamic Radial Rating (90 million revolutions) (C90) N - 84800
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 19100
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 49500
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 11100
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 148000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 33200
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.71

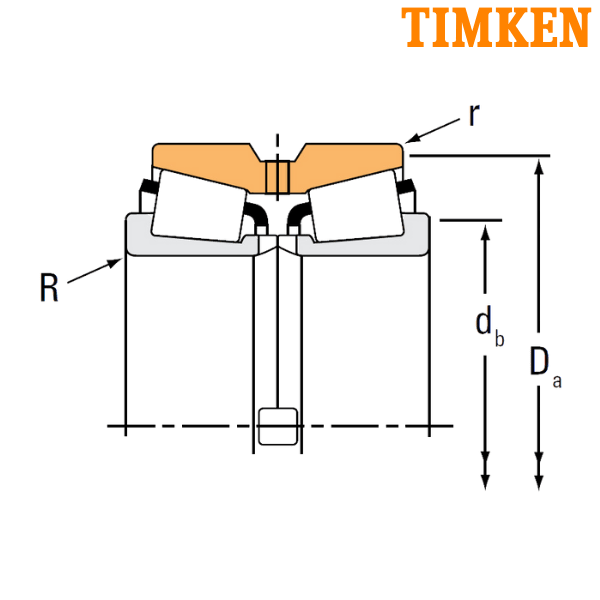

Maximum Shaft Fillet Radius (R) mm - 3.5
Maximum Shaft Fillet Radius (R) inch - 0.14
Backing Shoulder Diameter (db) mm - 106
Backing Shoulder Diameter (db) inch - 4.17
Maximum Housing Fillet Radius (r) mm - 1.5
Maximum Housing Fillet Radius (r) inch - 0.06
Cup Frontface Backing Diameter (Da) mm - 150
Cup Frontface Backing Diameter (Da) inch - 5.91
Weight (kg) - 8.8
Weight (lbs) - 19.38
Inner Part Number - NA759SW
Outer Part Number - 752D
TNASW - Double-Row Bearings are a Variant of Type TNA, having Chamfers and Slots on the Front Face of the Inner Ring
