NA567/563D TIMKEN

Brand - TIMKEN
Item Number - NA567/563D TIMKEN
Also Known As - NA567 - 563D
Category - Double Row Tapered Roller Bearing (TNA Type)

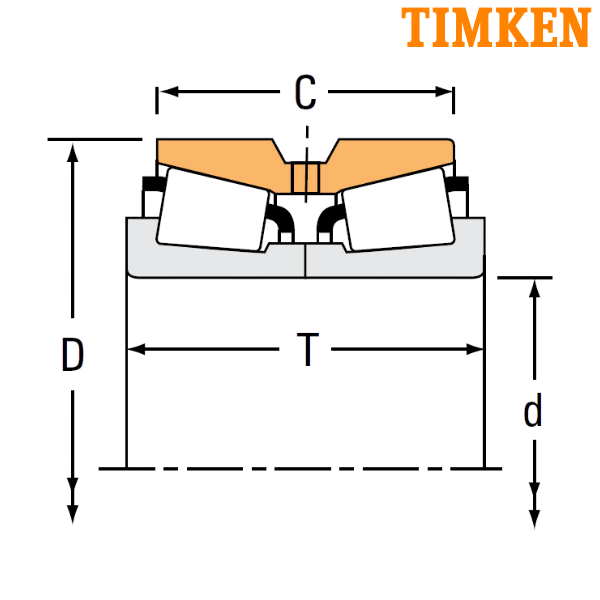

Bore Diameter (d) mm - 73.025
Bore Diameter (d) inch - 2.875
Outer Diameter (D) mm - 127
Outer Diameter (D) inch - 5
Width (T) mm - 80.962
Width (T) inch - 3.1875
Double Outer Ring Width (C) mm - 65.088
Double Outer Ring Width (C) inch - 2.5625
Dynamic Load Rating (C1) N - 342000
Dynamic Load Rating (C1) lbf - 76900
Factor (e) - 0.36
Factor (Y1) - 1.86
Factor (Y2) - 2.76
Dynamic Radial Rating (90 million revolutions) (C90) N - 50900
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 11400
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 31700
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 7130
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 88600
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 19900
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.61

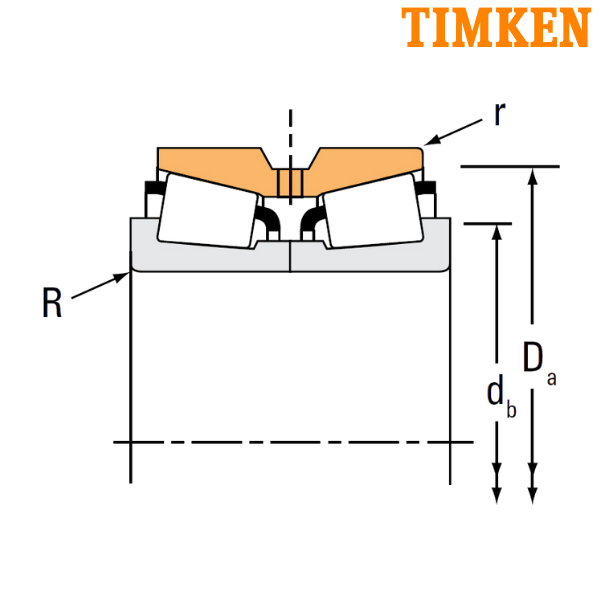

Maximum Shaft Fillet Radius (R) mm - 6.8
Maximum Shaft Fillet Radius (R) inch - 0.27
Backing Shoulder Diameter (db) mm - 94
Backing Shoulder Diameter (db) inch - 3.7
Maximum Housing Fillet Radius (r) mm - 1.5
Maximum Housing Fillet Radius (r) inch - 0.06
Cup Frontface Backing Diameter (Da) mm - 119
Cup Frontface Backing Diameter (Da) inch - 4.69
Weight (kg) - 3.86
Weight (lbs) - 8.52
Inner Part Number - NA567
Outer Part Number - 563D
TNA - Non-Adjustable, Double-Row Bearing

** Images are for representation purposes only
