NA24776SW/24720D TIMKEN

Brand - TIMKEN
Item Number - NA24776SW/24720D TIMKEN
Also Known As - NA24776SW - 24720D
Category - Double Row Tapered Roller Bearing (TNASWE Type)

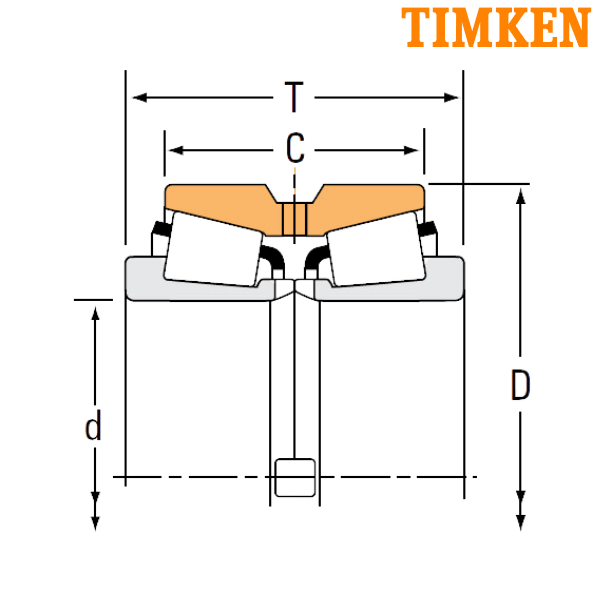

Bore Diameter (d) mm - 38.1
Bore Diameter (d) inch - 1.5
Outer Diameter (D) mm - 76.2
Outer Diameter (D) inch - 3
Width (T) mm - 58.738
Width (T) inch - 2.3125
Double Outer Ring Width (C) mm - 39.688
Double Outer Ring Width (C) inch - 1.5625
Dynamic Load Rating (C1) N - 132000
Dynamic Load Rating (C1) lbf - 29600
Factor (e) - 0.39
Factor (Y1) - 1.72
Factor (Y2) - 2.56
Dynamic Radial Rating (90 million revolutions) (C90) N - 19600
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 4400
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 13200
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 2960
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 34100
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 7670
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.49

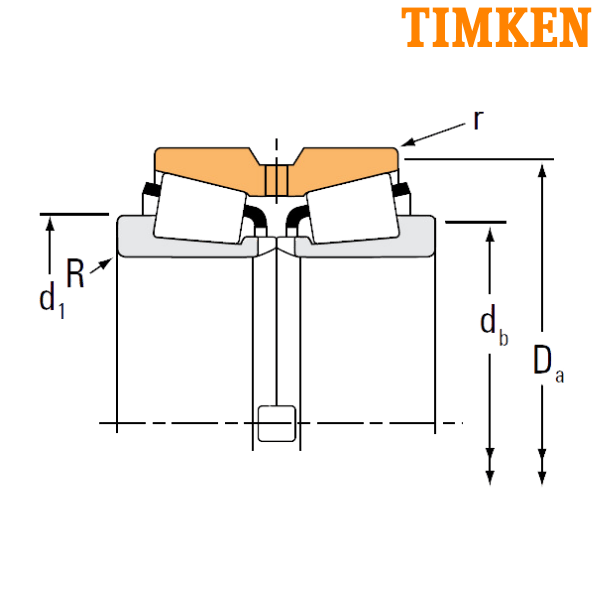

Outside Diameter of Rib (d1) mm - 58.25
Outside Diameter of Rib (d1) inch - 2.2933
Maximum Shaft Fillet Radius (R) mm - 0.8
Maximum Shaft Fillet Radius (R) inch - 0.03
Backing Shoulder Diameter (db) mm - 45
Backing Shoulder Diameter (db) inch - 1.77
Maximum Housing Fillet Radius (r) mm - 0.8
Maximum Housing Fillet Radius (r) inch - 0.03
Cup Frontface Backing Diameter (Da) mm - 72
Cup Frontface Backing Diameter (Da) inch - 2.83
Weight (kg) - 1.15
Weight (lbs) - 2.543
Inner Part Number - NA24776SW
Outer Part Number - 24720D

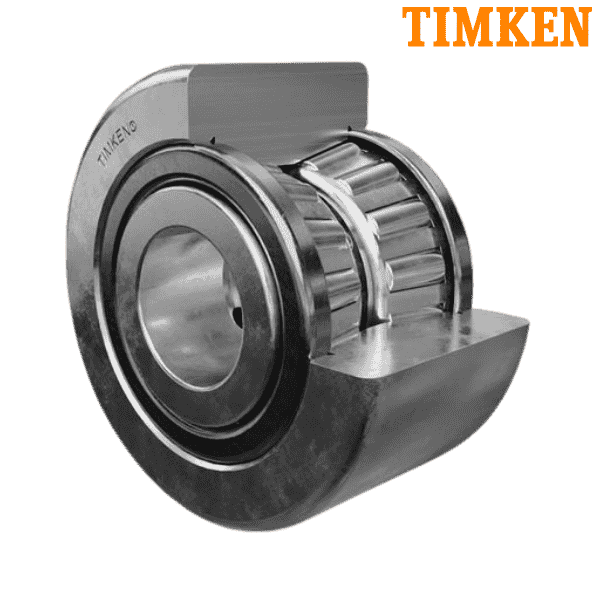

TNASWE - Double-Row Bearings are a Variant of Type TNA, with Lubricant Slots and Extended Back Face Rib

** Images are for representation purposes only
