Description
Brand - ZEN
Item Number - NA2207-2RS ZEN
Category - Yoke Type Track Rollers (NA2200-2RS)

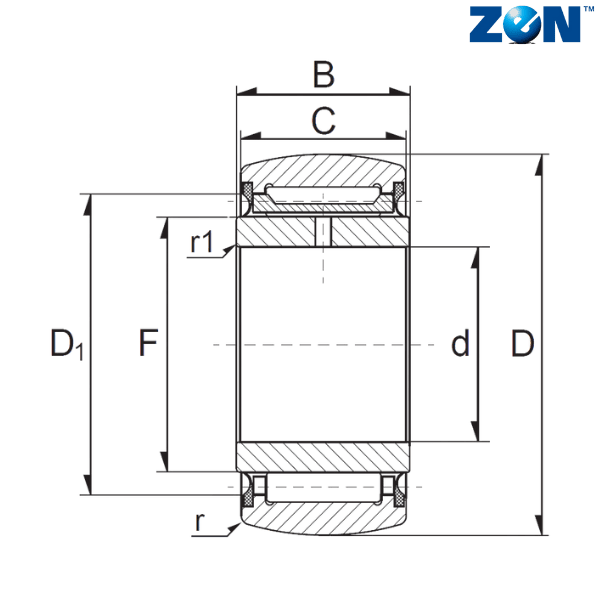

Inner Diameter (d) mm - 35
Outer Diameter (D) mm - 72
Width (B) mm - 23
C (mm) - 22.7
F (mm) - 42
D1 (mm) - 50
r (mm) - 1.1
r1 (mm) - 0.6
Weight (kg) - 0.505
Dynamic Load Rating (N) - 23000
Static Load Rating (N) - 35500
Limiting Speed - 1100
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Notes :
2RS - Rubber Seals
** Images are for representation purposes only
