Description
Brand - ZEN
Item Number - NA2204-2RS ZEN
Category - Yoke Type Track Rollers (NA2200-2RS)

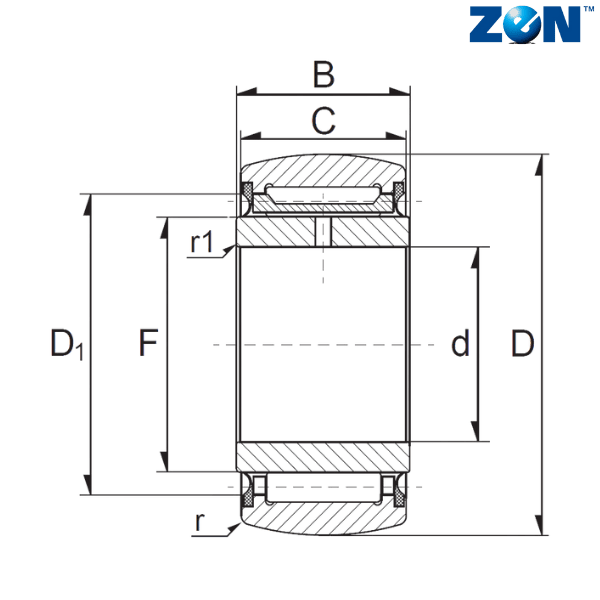

Inner Diameter (d) mm - 20
Outer Diameter (D) mm - 47
Width (B) mm - 18
C (mm) - 17.8
F (mm) - 25
D1 (mm) - 33
r (mm) - 1
r1 (mm) - 0.3
Weight (kg) - 0.177
Dynamic Load Rating (N) - 1500
Static Load Rating (N) - 18300
Limiting Speed - 2300
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Notes :
2RS - Rubber Seals
** Images are for representation purposes only
