Description
Brand - ZEN
Item Number - NA2203-2RS ZEN
Category - Yoke Type Track Rollers (NA2200-2RS)

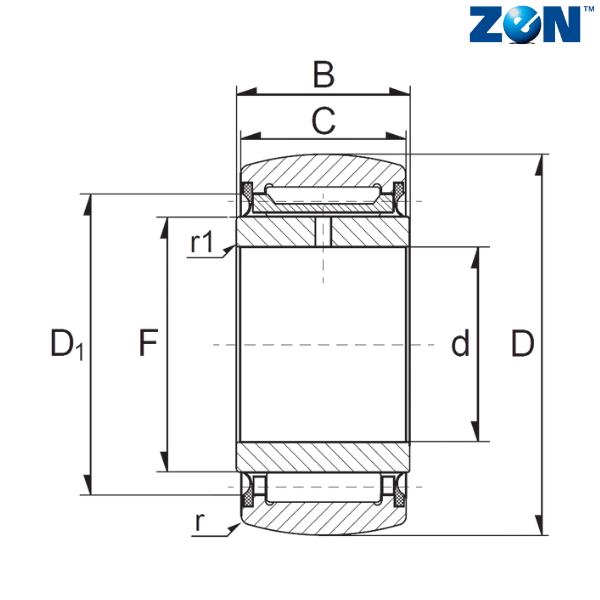

Inner Diameter (d) mm - 17
Outer Diameter (D) mm - 40
Width (B) mm - 16
C (mm) - 15.8
F (mm) - 22
D1 (mm) - 28
r (mm) - 1
r1 (mm) - 0.3
Weight (kg) - 0.112
Dynamic Load Rating (N) - 9900
Static Load Rating (N) - 13700
Limiting Speed - 3000
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Notes :
2RS - Rubber Seals
** Images are for representation purposes only
