Description
Brand - ZEN
Item Number - NA2201-2RS ZEN
Category - Yoke Type Track Rollers (NA2200-2RS)

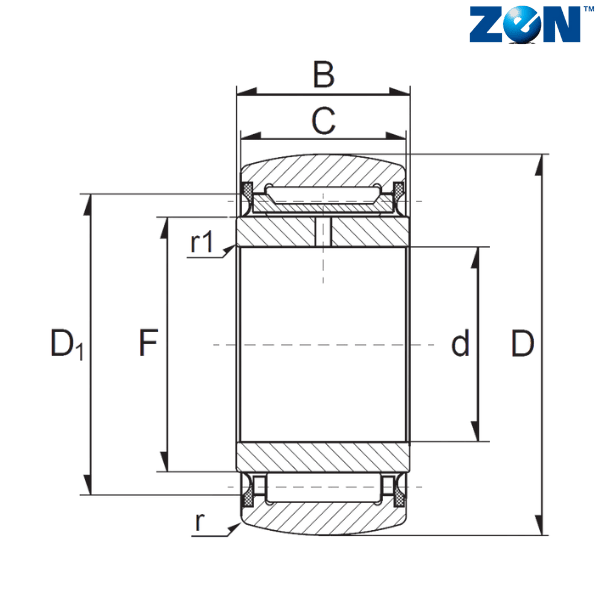

Inner Diameter (d) mm - 12
Outer Diameter (D) mm - 32
Width (B) mm - 14
C (mm) - 13.8
F (mm) - 16
D1 (mm) - 22
r (mm) - 0.6
r1 (mm) - 0.3
Weight (kg) - 0.067
Dynamic Load Rating (N) - 7500
Static Load Rating (N) - 9000
Limiting Speed - 4700
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Notes :
2RS - Rubber Seals
** Images are for representation purposes only
