Description
Brand - ZEN
Item Number - NA2200-2RS ZEN
Category - Yoke Type Track Rollers (NA2200-2RS)
Inner Diameter (d) mm - 10
Outer Diameter (D) mm - 30
Width (B) mm - 14
C (mm) - 13.8
F (mm) - 14
D1 (mm) - 20
r (mm) - 0.6
r1 (mm) - 0.3
Weight (kg) - 0.06
Dynamic Load Rating (N) - 7000
Static Load Rating (N) - 8000
Limiting Speed - 5500
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Notes :
2RS - Rubber Seals

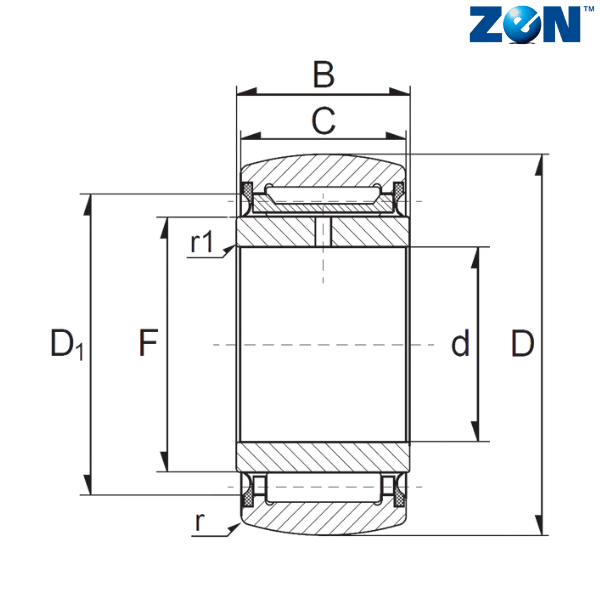

** Images are for representation purposes only
