Description
Brand - ZEN
Item Number - NA22/8-2RS ZEN
Category - Yoke Type Track Rollers (NA2200-2RS)

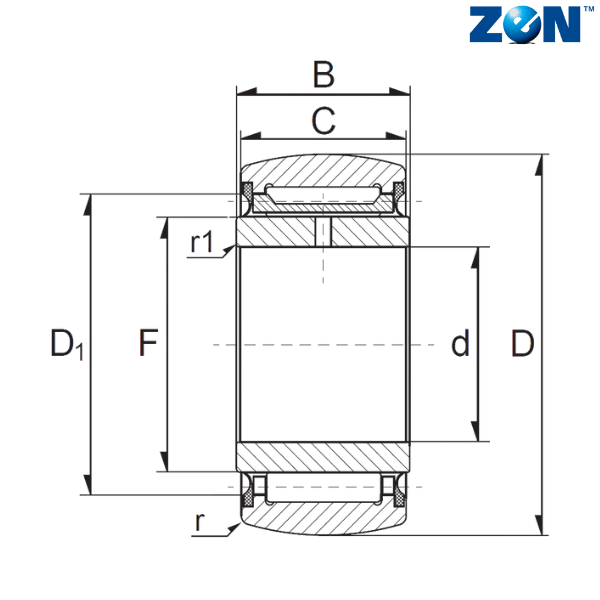

Inner Diameter (d) mm - 8
Outer Diameter (D) mm - 24
Width (B) mm - 12
C (mm) - 11.8
F (mm) - 12
D1 (mm) - 18
r (mm) - 0.3
r1 (mm) - 0.3
Weight (kg) - 0.034
Dynamic Load Rating (N) - 4800
Static Load Rating (N) - 4800
Limiting Speed - 7000
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Notes :
2RS - Rubber Seals
** Images are for representation purposes only
