Description
Brand - ZEN
Item Number - NA22/6-2RS ZEN
Category - Yoke Type Track Rollers (NA2200-2RS)
Inner Diameter (d) mm - 6
Outer Diameter (D) mm - 19
Width (B) mm - 12
C (mm) - 11.8
F (mm) - 10
D1 (mm) - 16
r (mm) - 0.3
r1 (mm) - 0.3
Weight (kg) - 0.022
Dynamic Load Rating (N) - 3900
Static Load Rating (N) - 3650
Limiting Speed - 9000
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Notes :
2RS - Rubber Seals

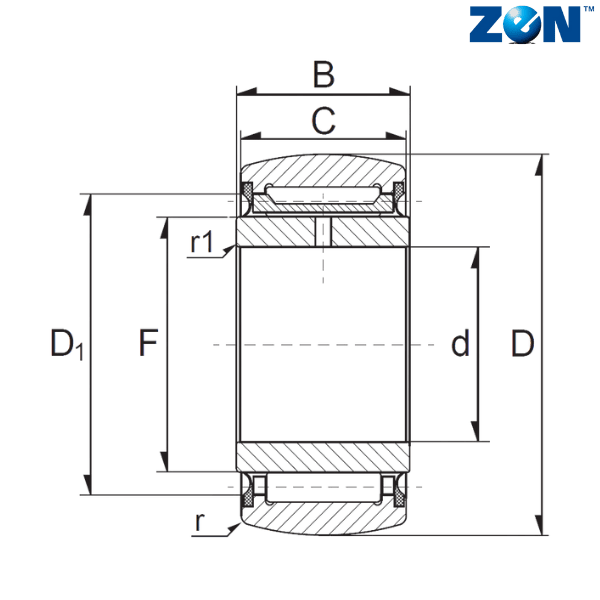

** Images are for representation purposes only
