NA14138/14276D TIMKEN

Brand - TIMKEN
Item Number - NA14138/14276D TIMKEN
Also Known As - NA14138 - 14276D
Category - Double Row Tapered Roller Bearing (TNA Type)

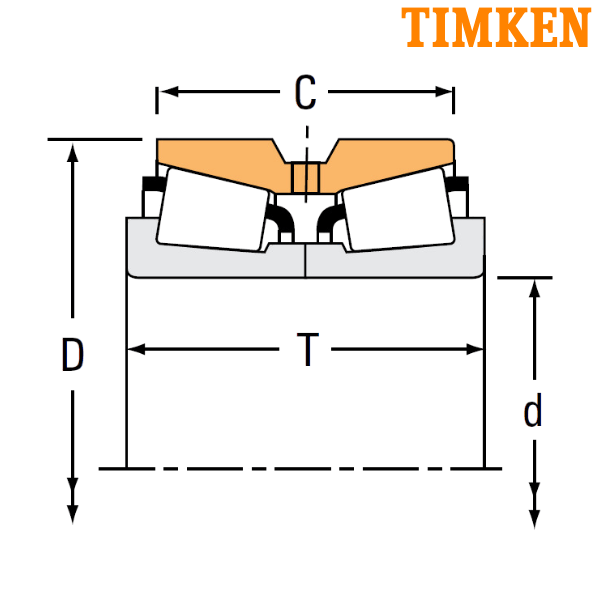

Bore Diameter (d) mm - 34.925
Bore Diameter (d) inch - 1.375
Outer Diameter (D) mm - 69.012
Outer Diameter (D) inch - 2.717
Width (T) mm - 46.04
Width (T) inch - 1.8126
Double Outer Ring Width (C) mm - 38.1
Double Outer Ring Width (C) inch - 1.5
Dynamic Load Rating (C1) N - 95100
Dynamic Load Rating (C1) lbf - 21400
Factor (e) - 0.38
Factor (Y1) - 1.77
Factor (Y2) - 2.63
Dynamic Radial Rating (90 million revolutions) (C90) N - 14200
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 3180
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 9260
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 2080
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 24600
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 5540
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.53

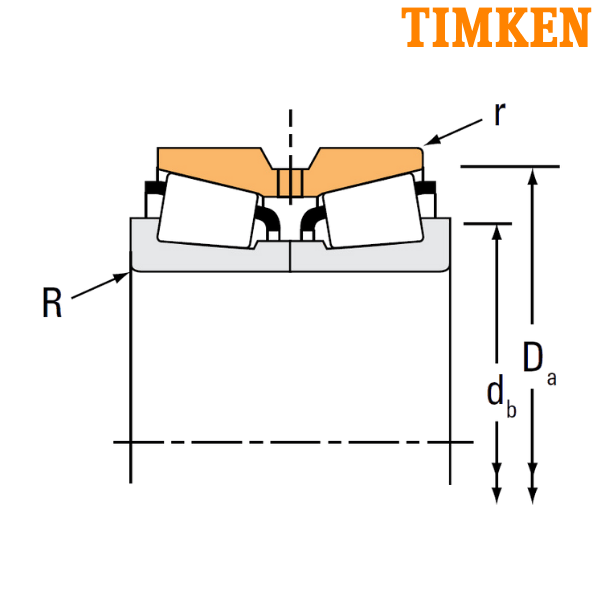

Maximum Shaft Fillet Radius (R) mm - 3.5
Maximum Shaft Fillet Radius (R) inch - 0.14
Backing Shoulder Diameter (db) mm - 46
Backing Shoulder Diameter (db) inch - 1.81
Maximum Housing Fillet Radius (r) mm - 0.8
Maximum Housing Fillet Radius (r) inch - 0.03
Cup Frontface Backing Diameter (Da) mm - 63
Cup Frontface Backing Diameter (Da) inch - 2.48
Weight (kg) - 0.7
Weight (lbs) - 1.56
Inner Part Number - NA14138
Outer Part Number - 14276D
TNA - Non-Adjustable, Double-Row Bearing

** Images are for representation purposes only
