NA127096SW/127136CD TIMKEN

Brand - TIMKEN
Item Number - NA127096SW/127136CD TIMKEN
Also Known As - NA127096SW - 127136CD

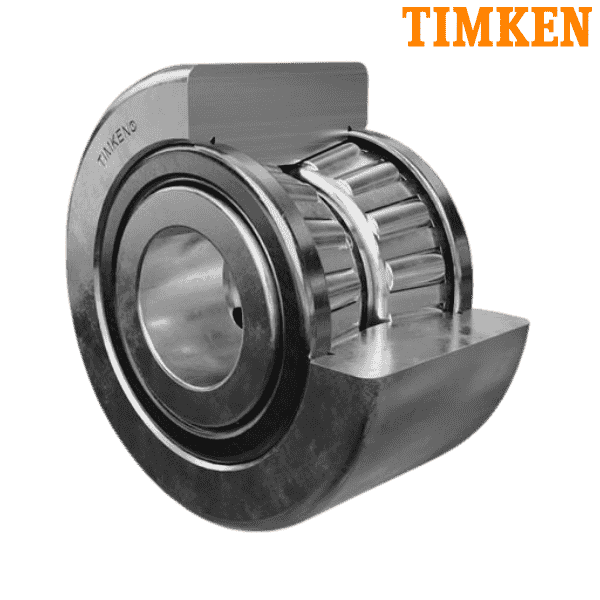

Category - Double Row Tapered Roller Bearing (TNASWE Type)

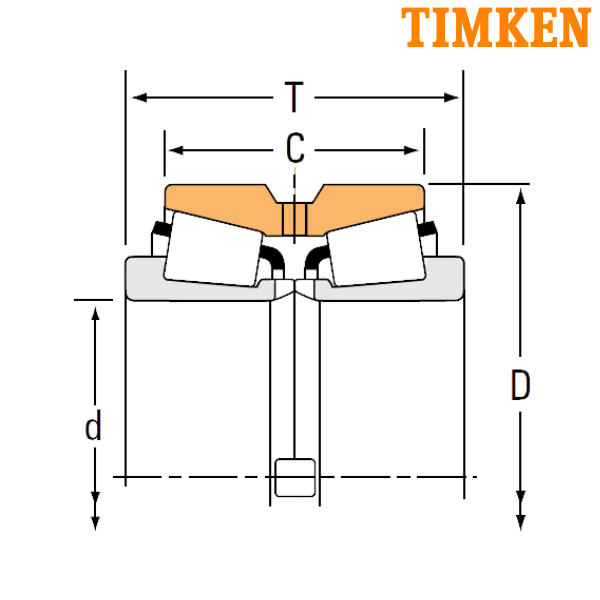

Bore Diameter (d) mm - 244.475
Bore Diameter (d) inch - 9.625
Outer Diameter (D) mm - 349.148
Outer Diameter (D) inch - 13.746
Width (T) mm - 133.35
Width (T) inch - 5.25
Double Outer Ring Width (C) mm - 101.6
Double Outer Ring Width (C) inch - 4
Dynamic Load Rating (C1) N - 1150000
Dynamic Load Rating (C1) lbf - 258000
Factor (e) - 0.35
Factor (Y1) - 1.91
Factor (Y2) - 2.85
Dynamic Radial Rating (90 million revolutions) (C90) N - 171000
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 38500
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 103000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 23300
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 298000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 67000
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.65

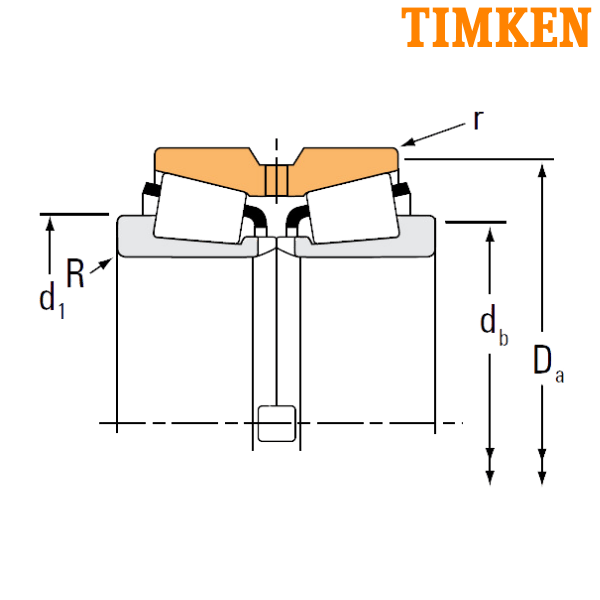

Outside Diameter of Rib (d1) mm - 290.452
Outside Diameter of Rib (d1) inch - 11.4351
Maximum Shaft Fillet Radius (R) mm - 6.4
Maximum Shaft Fillet Radius (R) inch - 0.25
Backing Shoulder Diameter (db) mm - 269
Backing Shoulder Diameter (db) inch - 10.59
Maximum Housing Fillet Radius (r) mm - 1.5
Maximum Housing Fillet Radius (r) inch - 0.06
Cup Frontface Backing Diameter (Da) mm - 329
Cup Frontface Backing Diameter (Da) inch - 12.95
Weight (kg) - 34.95
Weight (lbs) - 77.015
Inner Part Number - NA127096SW
Outer Part Number - 127136CD
TNASWE - Double-Row Bearings are a Variant of Type TNA, with Lubricant Slots and Extended Back Face Rib

** Images are for representation purposes only
