NA11045 B6 NADELLA

Brand - NADELLA
Item Number - NA11045 B6 NADELLA
Category - Full Complement Needle Rollers with Inner Ring Also Known As - NA11045B6

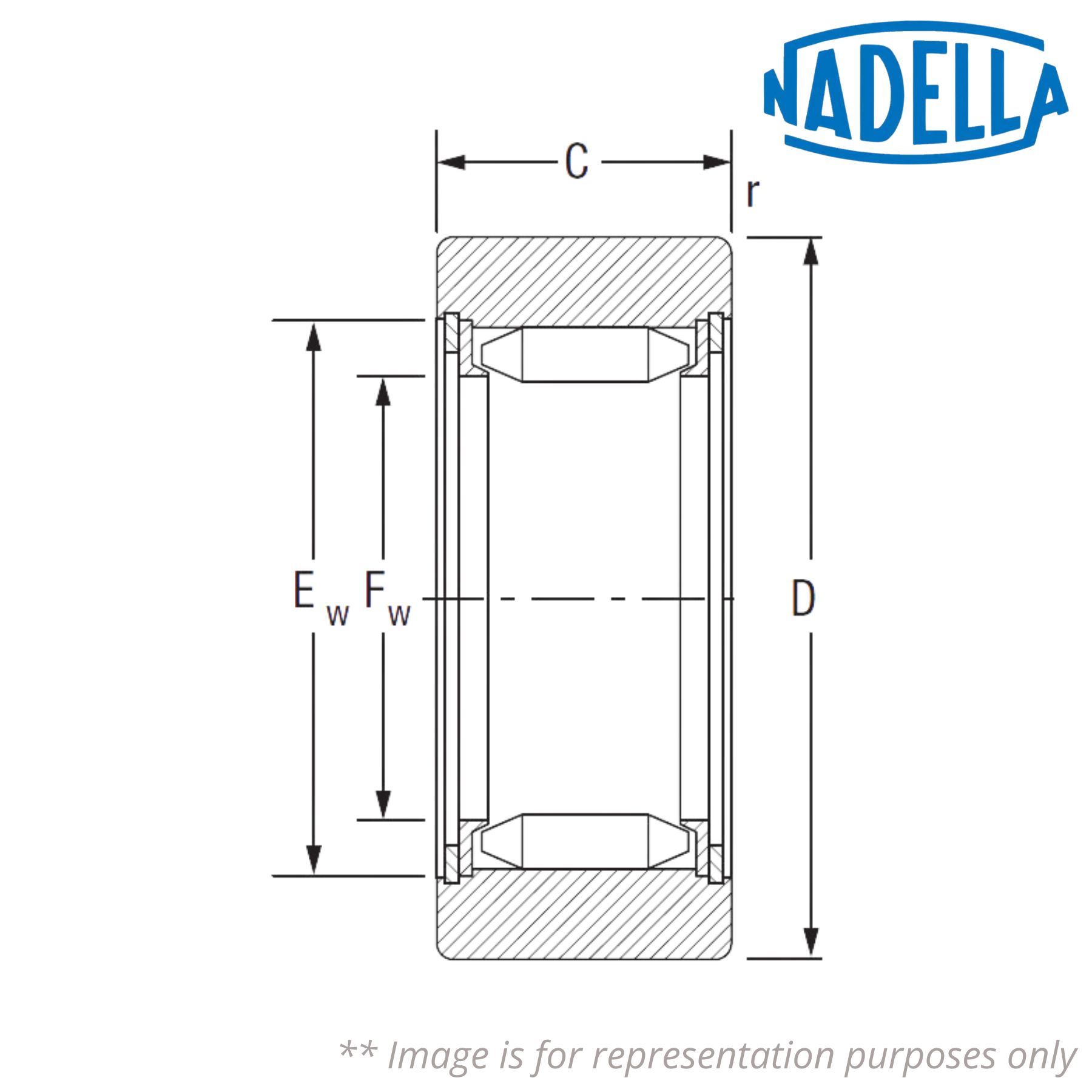

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 85 mm
Recommended Tolerance Per Fw Diameter of the Pivot without the Use of Inner Ring - 55.4 mm
Tolerances on the D Dimension - 85 mm
C nom. - 22 mm
Dimension (Ew) - 62.4 mm
Dimension (r) - 0.85 mm
Weight - 0.48 kg
Load Coefficient (Cw) - 33500 N
Dynamic Load Coefficient (Fr) - 47500 N
Static Load Coefficient (For) - 69000 N
Speed Limit with Grease - 1450 RPM
Shaft Diameter of Inner Ring (Ø) - 45 mm

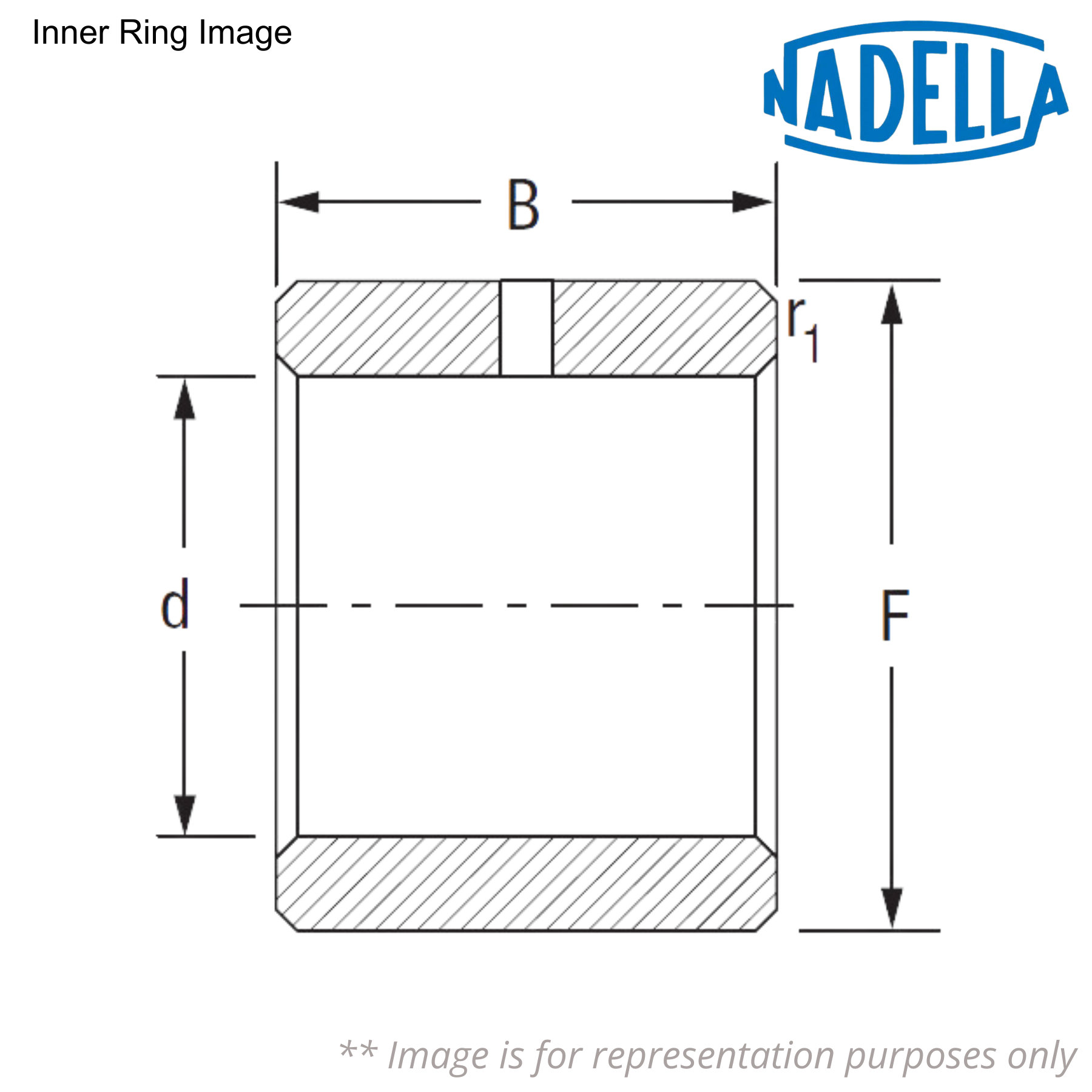

Inner Ring Designation - BIC 2045
Inner Ring Dimension (F) - 55.4 mm
Inner Ring Dimension (B nom.) - 22 mm
Inner Ring Dimension (r1 min.) - 0.85 mm
Weight of Inner Ring - 139 mm
For Cam Follower Type - 11045

Description of Suffixes and Prefixes:
NA - Full Complement Needle Bearing with Inner Ring
B6 - Convex Outer Diameter

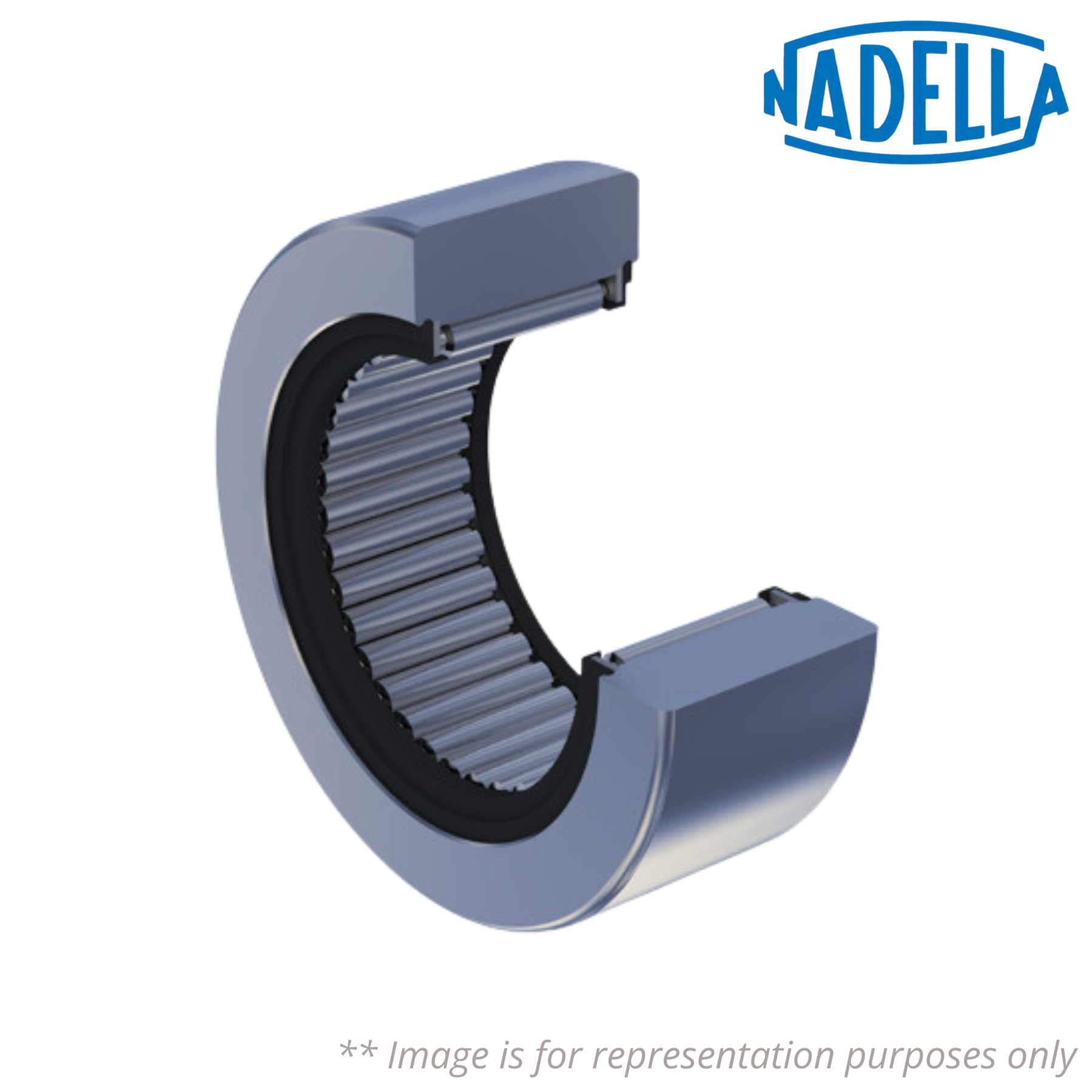

♦♦ Images are for representation purposes only
