NA11040 B6 NADELLA

Brand - NADELLA
Item Number - NA11040 B6 NADELLA
Category - Full Complement Needle Rollers with Inner Ring Also Known As - NA11040B6

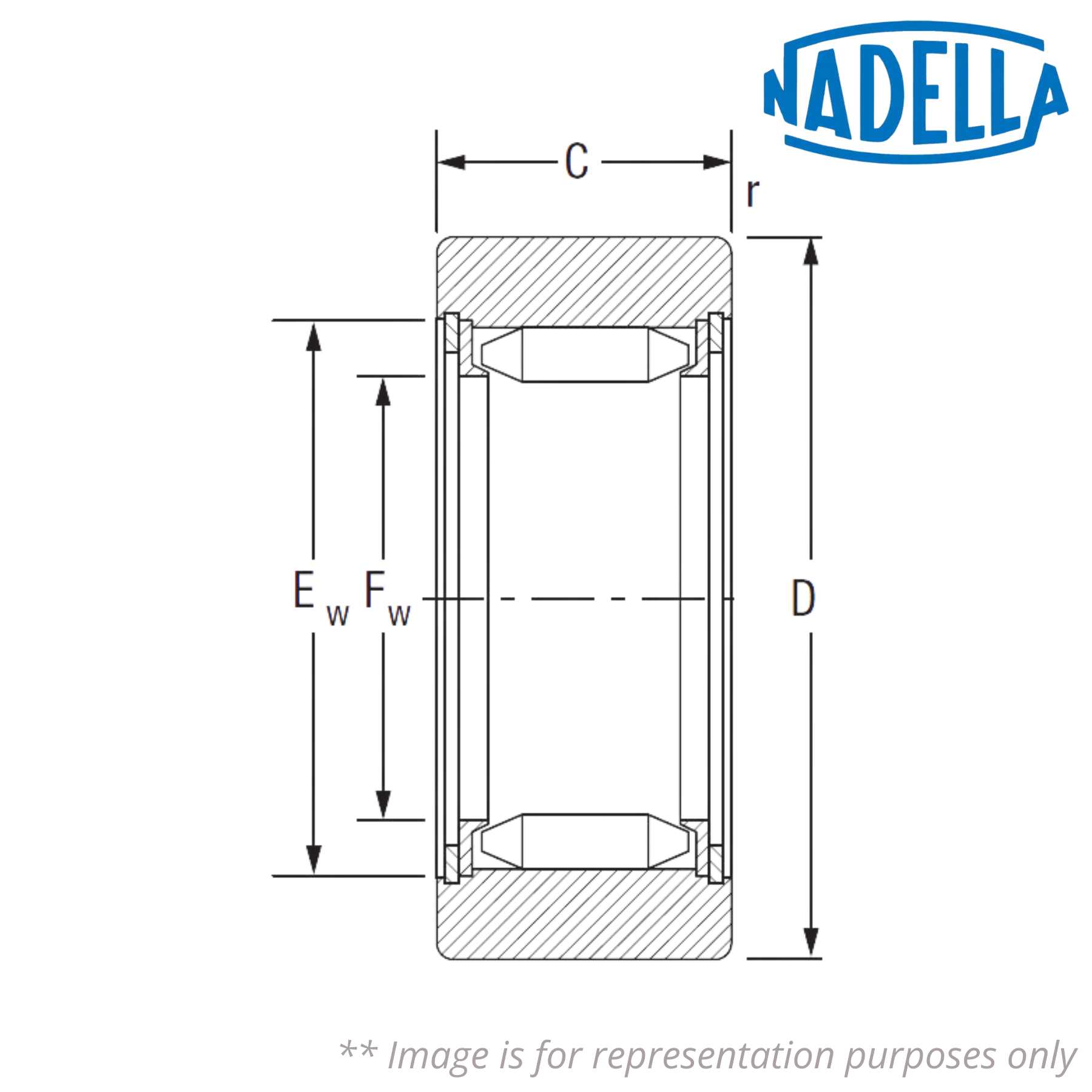

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 80 mm
Recommended Tolerance Per Fw Diameter of the Pivot without the Use of Inner Ring - 49.7 mm
Tolerances on the D Dimension - 80 mm
C nom. - 22 mm
Dimension (Ew) - 55.7 mm
Dimension (r) - 0.85 mm
Weight - 0.45 kg
Load Coefficient (Cw) - 34000 N
Dynamic Load Coefficient (Fr) - 47000 N
Static Load Coefficient (For) - 68000 N
Speed Limit with Grease - 1620 RPM

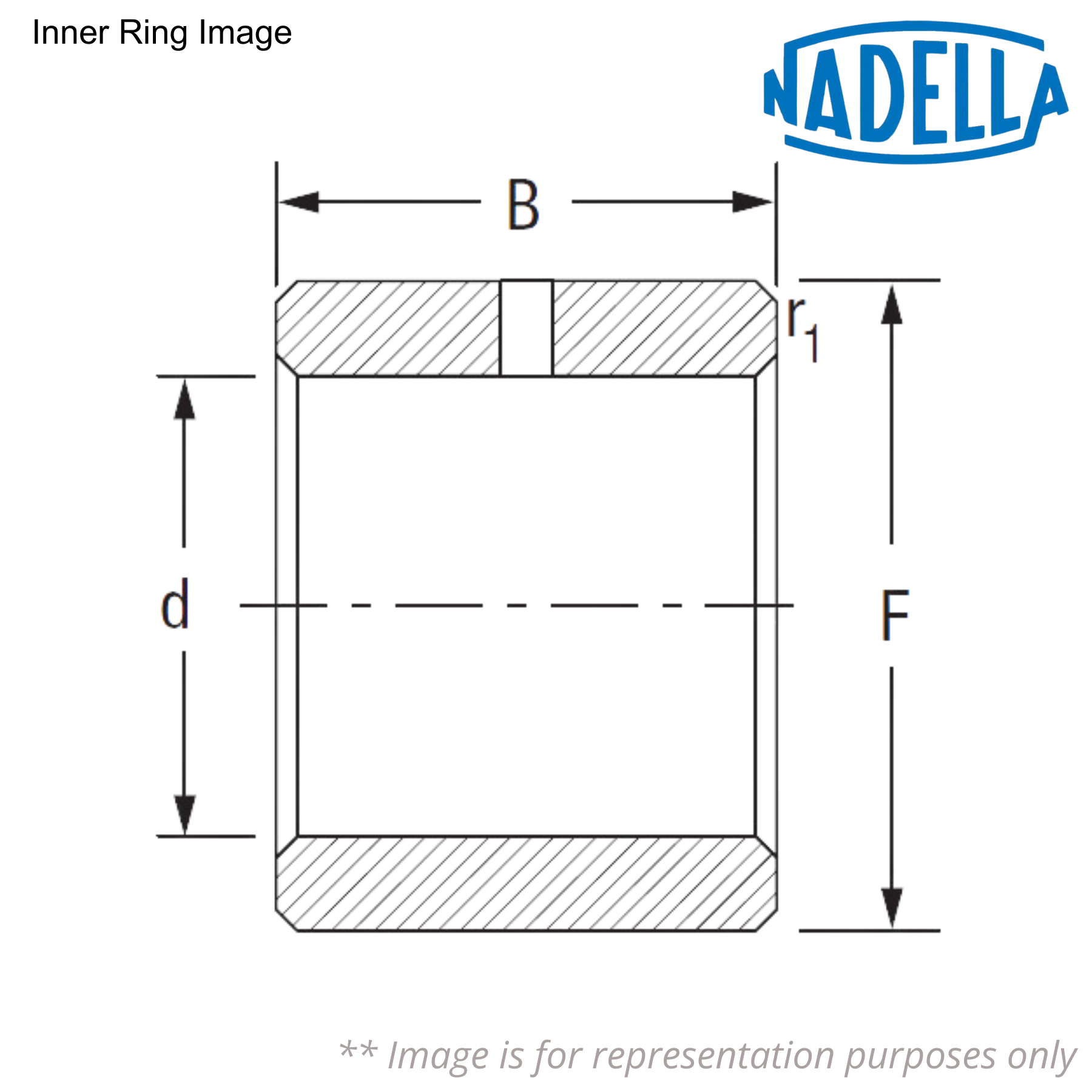

Shaft Diameter of Inner Ring (Ø) - 40 mm
Inner Ring Designation - BIC 2040
Inner Ring Dimension (F) - 49.7 mm
Inner Ring Dimension (B nom.) - 22 mm
Inner Ring Dimension (r1 min.) - 0.85 mm
Weight of Inner Ring - 115 mm
For Cam Follower Type - 11040

Description of Suffixes and Prefixes:
NA - Full Complement Needle Bearing with Inner Ring
B6 - Convex Outer Diameter

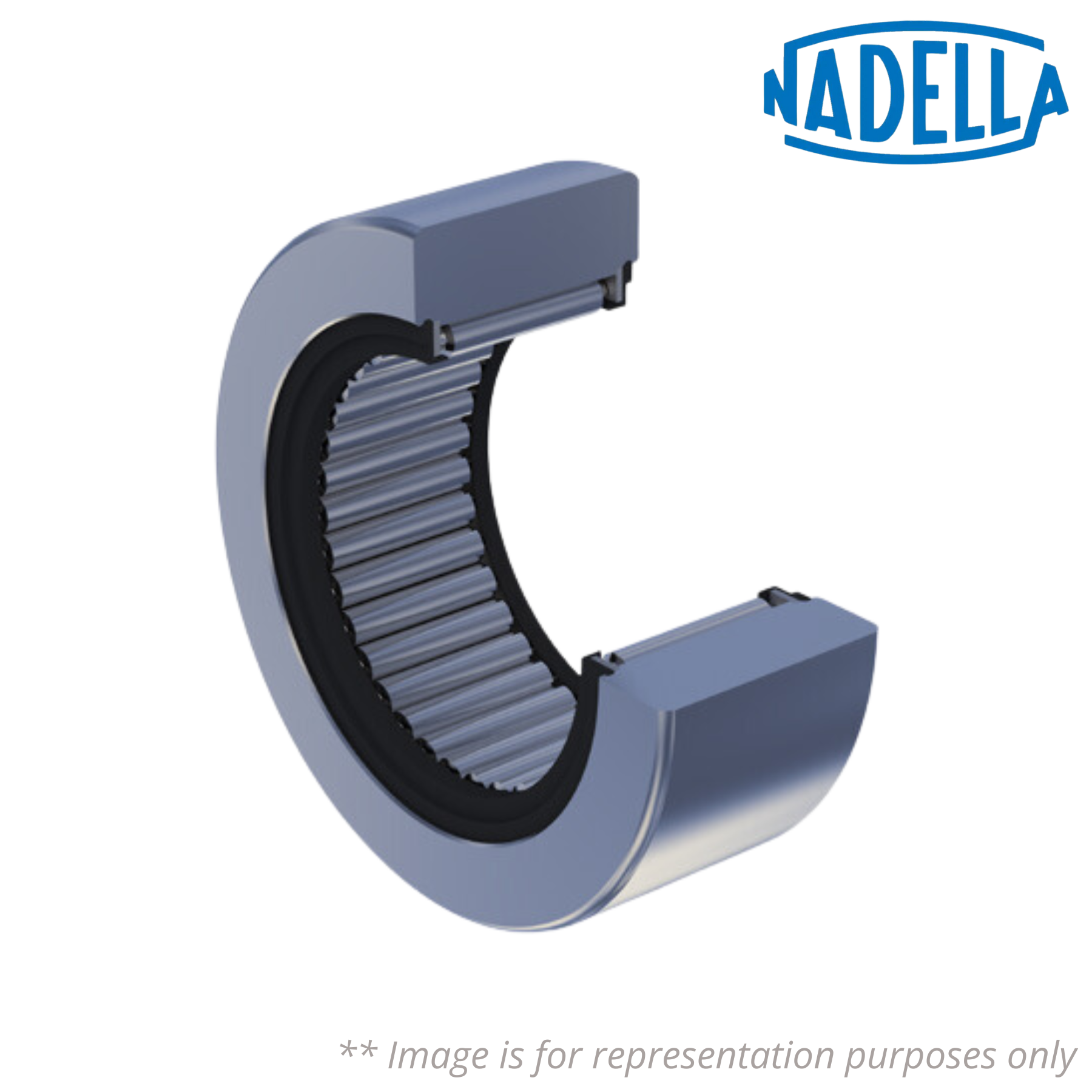

♦♦ Images are for representation purposes only
