NA11035 B6 NADELLA

Brand - NADELLA
Item Number - NA11035 B6 NADELLA
Category - Full Complement Needle Rollers with Inner Ring Also Known As - NA11035B6

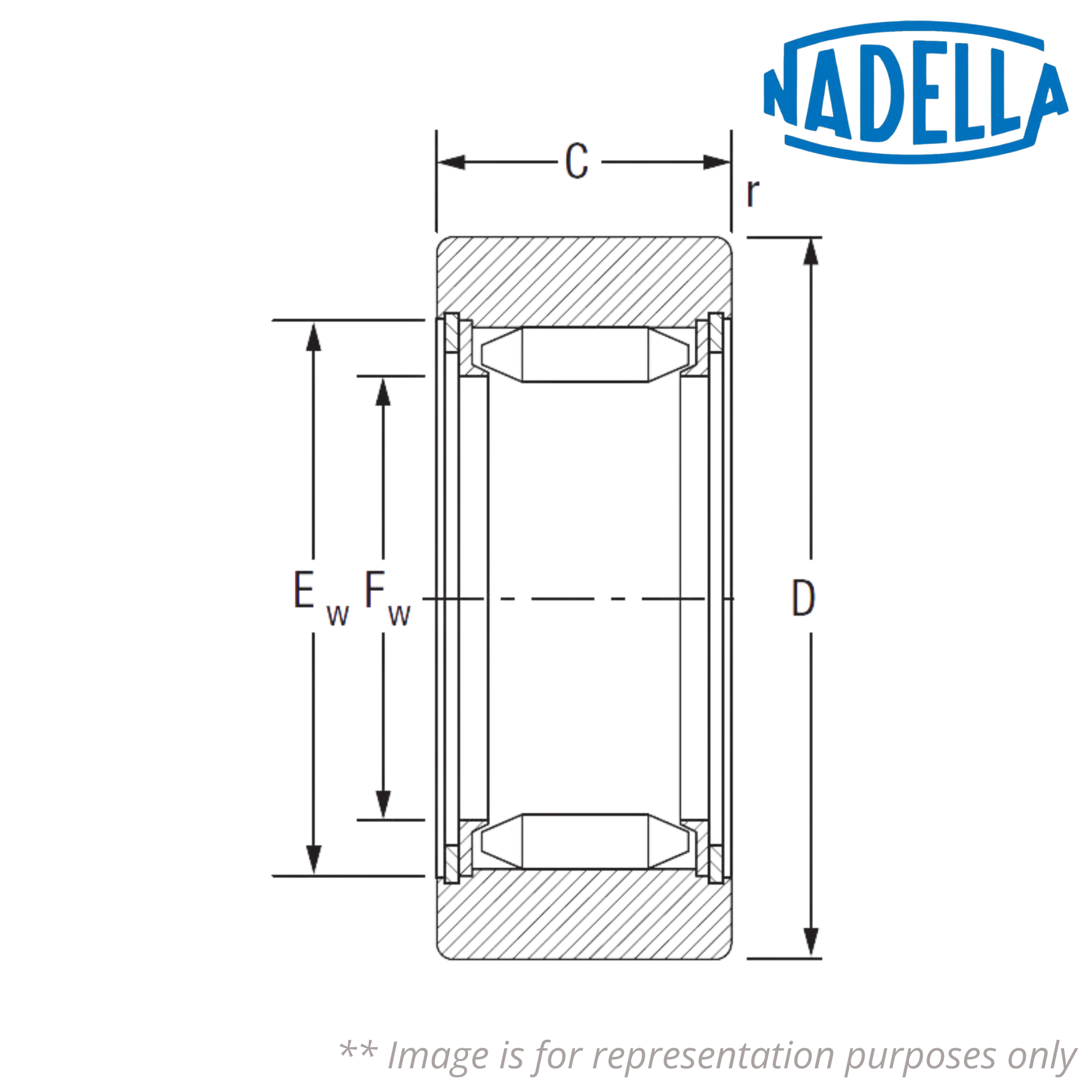

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 72 mm
Recommended Tolerance Per Fw Diameter of the Pivot without the Use of Inner Ring - 44 mm
Tolerances on the D Dimension - 72 mm
C nom. - 22 mm
Dimension (Ew) - 50 mm
Dimension (r) - 0.65 mm
Weight - 0.37 kg
Load Coefficient (Cw) - 32000 N
Dynamic Load Coefficient (Fr) - 41000 N
Static Load Coefficient (For) - 61000 N
Speed Limit with Grease - 1800 RPM

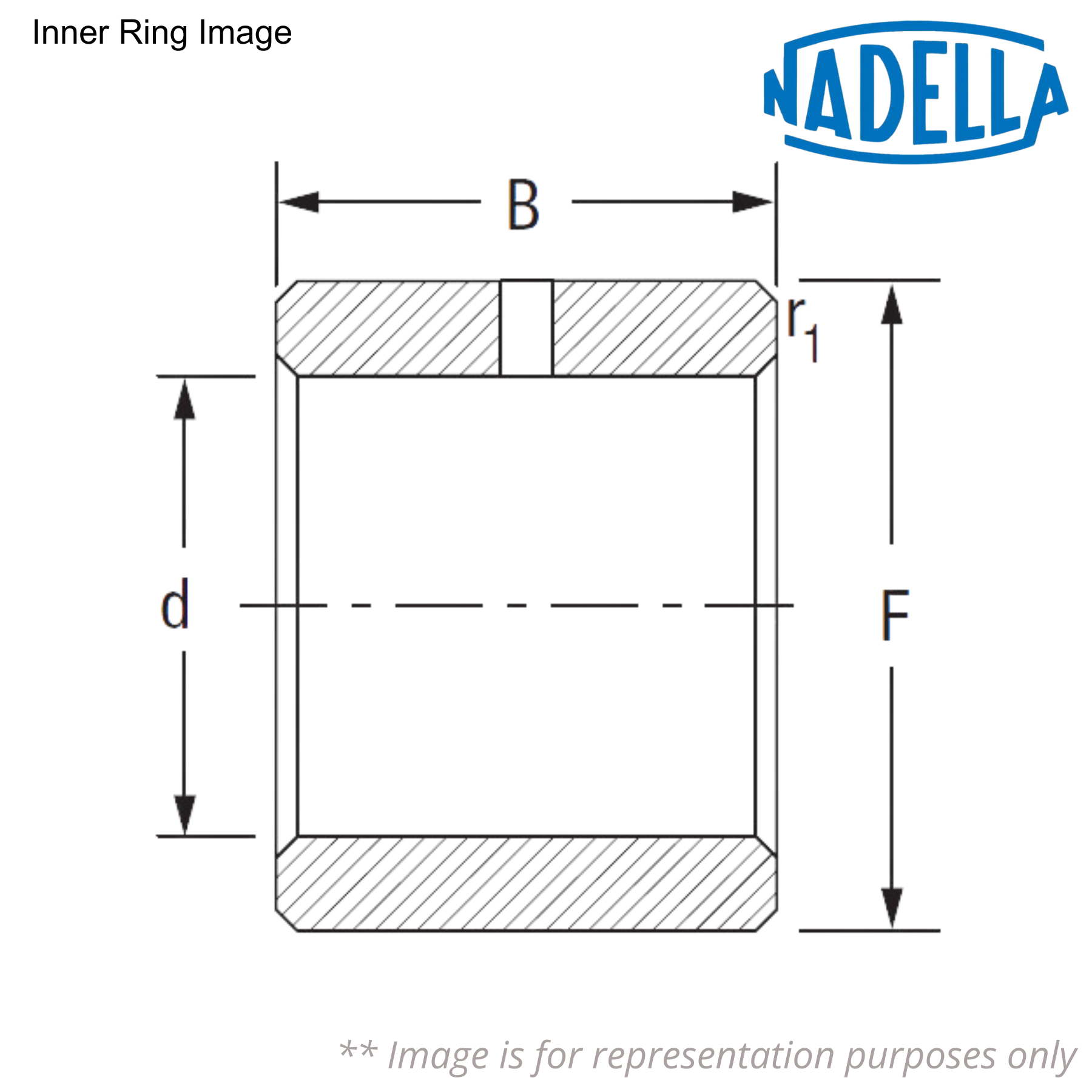

Shaft Diameter of Inner Ring (Ø) - 35 mm
Inner Ring Designation - BIC 2035
Inner Ring Dimension (F) - 44 mm
Inner Ring Dimension (B nom.) - 22 mm
Inner Ring Dimension (r1 min.) - 0.65 mm
Weight of Inner Ring - 93 mm
For Cam Follower Type - 11035

Description of Suffixes and Prefixes:
NA - Full Complement Needle Bearing with Inner Ring
B6 - Convex Outer Diameter

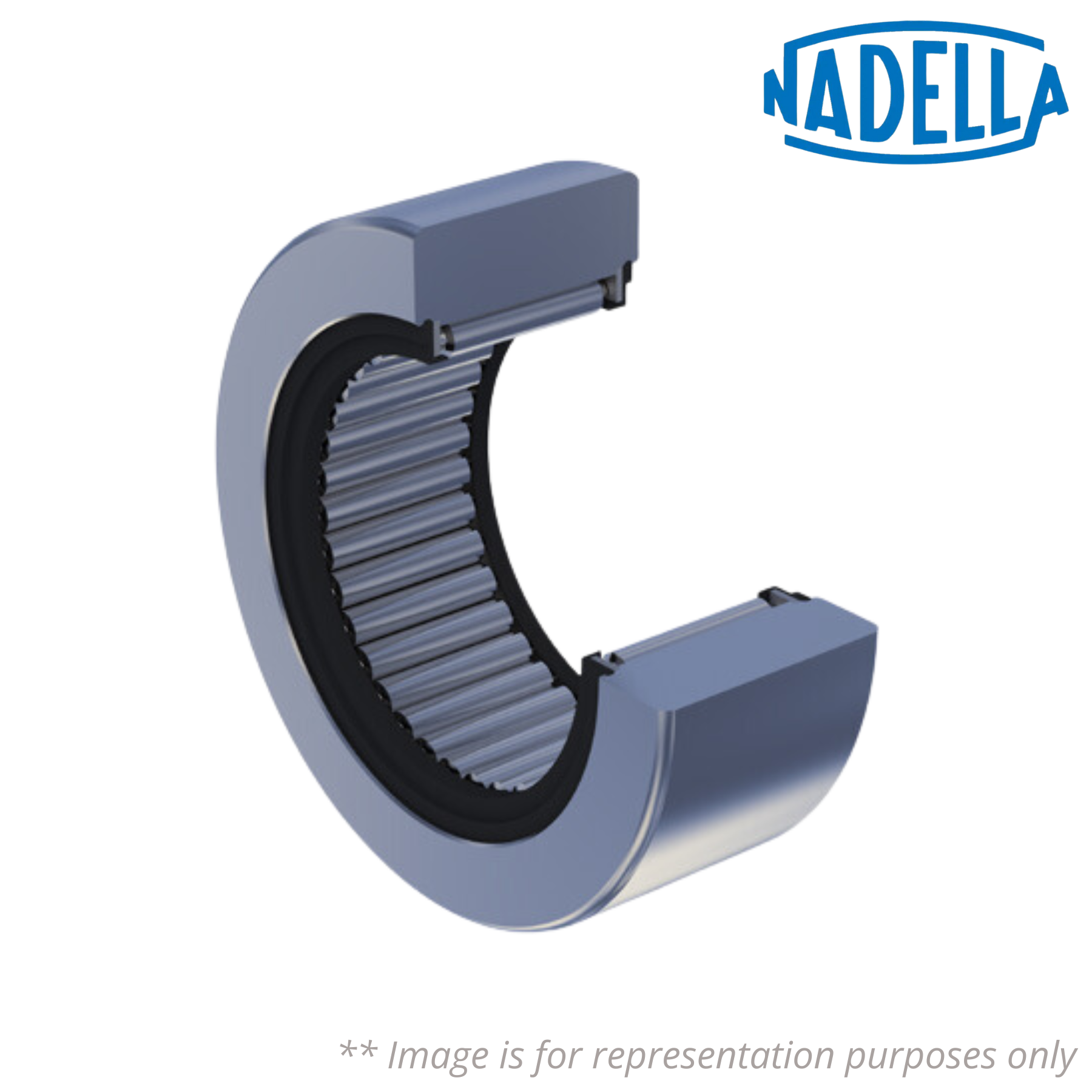

♦♦ Images are for representation purposes only
