NA11030 B6 NADELLA

Brand - NADELLA
Item Number - NA11030 B6 NADELLA

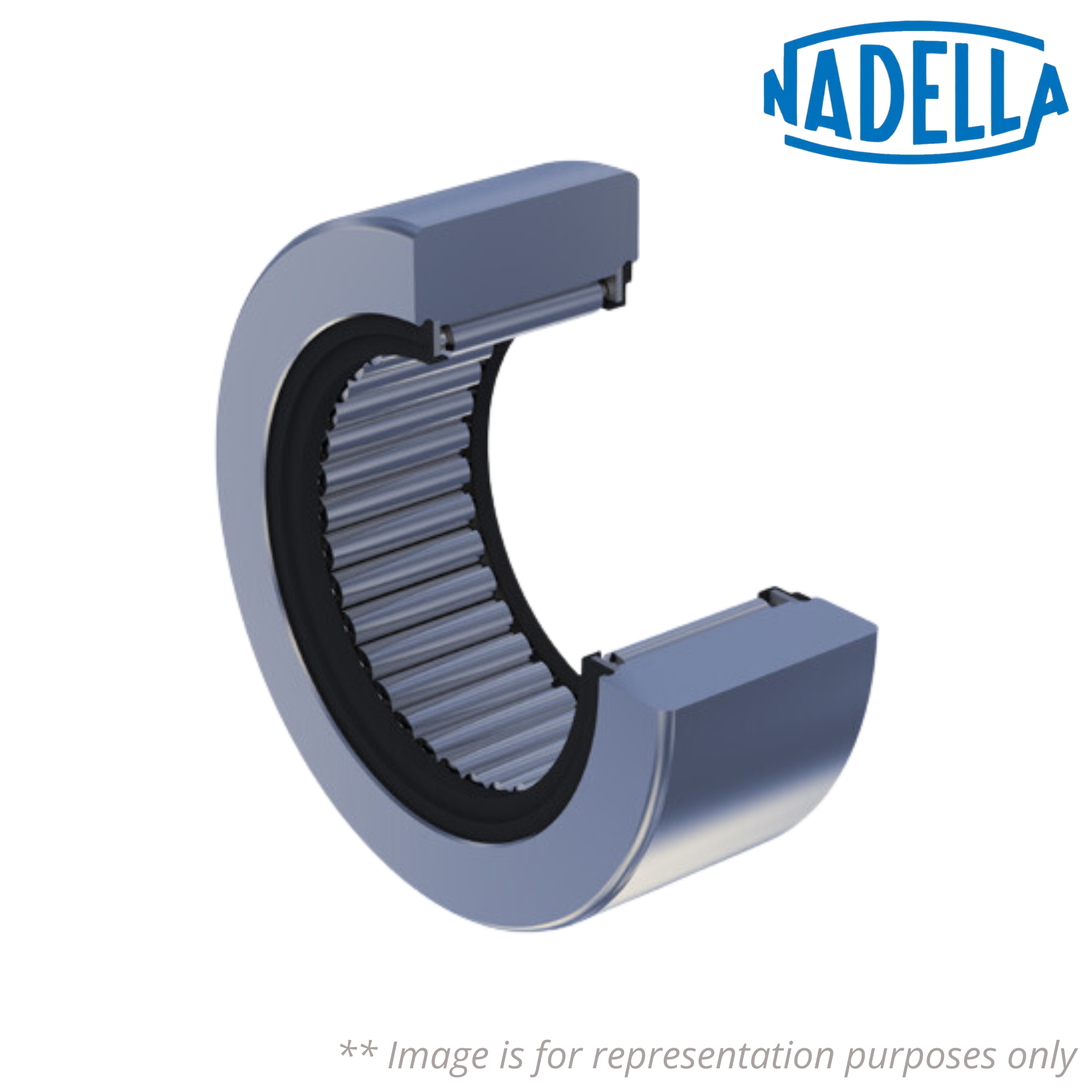

Category - Full Complement Needle Rollers with Inner Ring Also Known As - NA11030B6

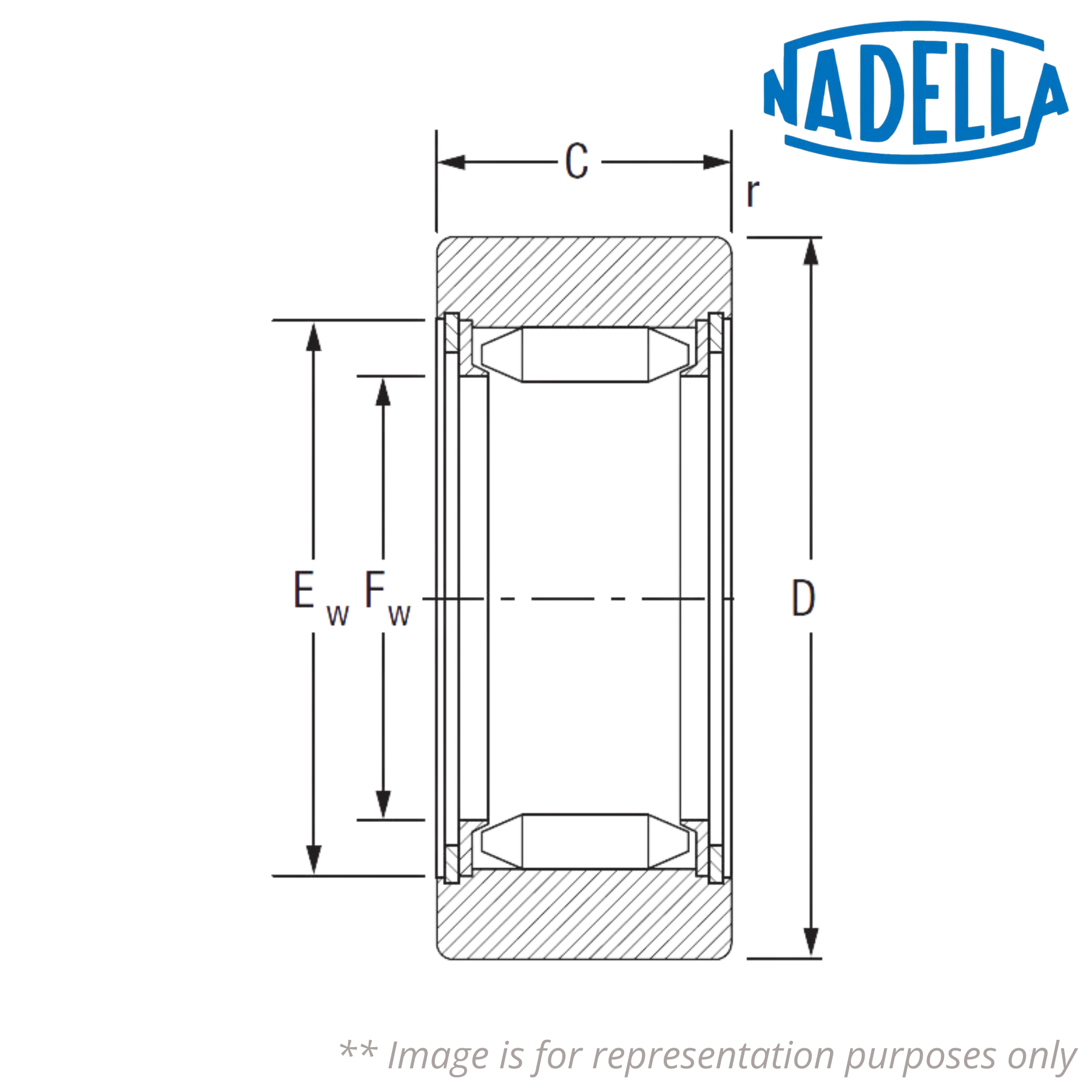

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 62 mm
Recommended Tolerance Per Fw Diameter of the Pivot without the Use of Inner Ring - 38.2 mm
Tolerances on the D Dimension - 62 mm
C nom. - 22 mm
Dimension (Ew) - 44.2 mm
Dimension (r) - 0.65 mm
Weight - 0.275 kg
Load Coefficient (Cw) - 28500 N
Dynamic Load Coefficient (Fr) - 31500 N
Static Load Coefficient (For) - 49500 N
Speed Limit with Grease - 2050 RPM

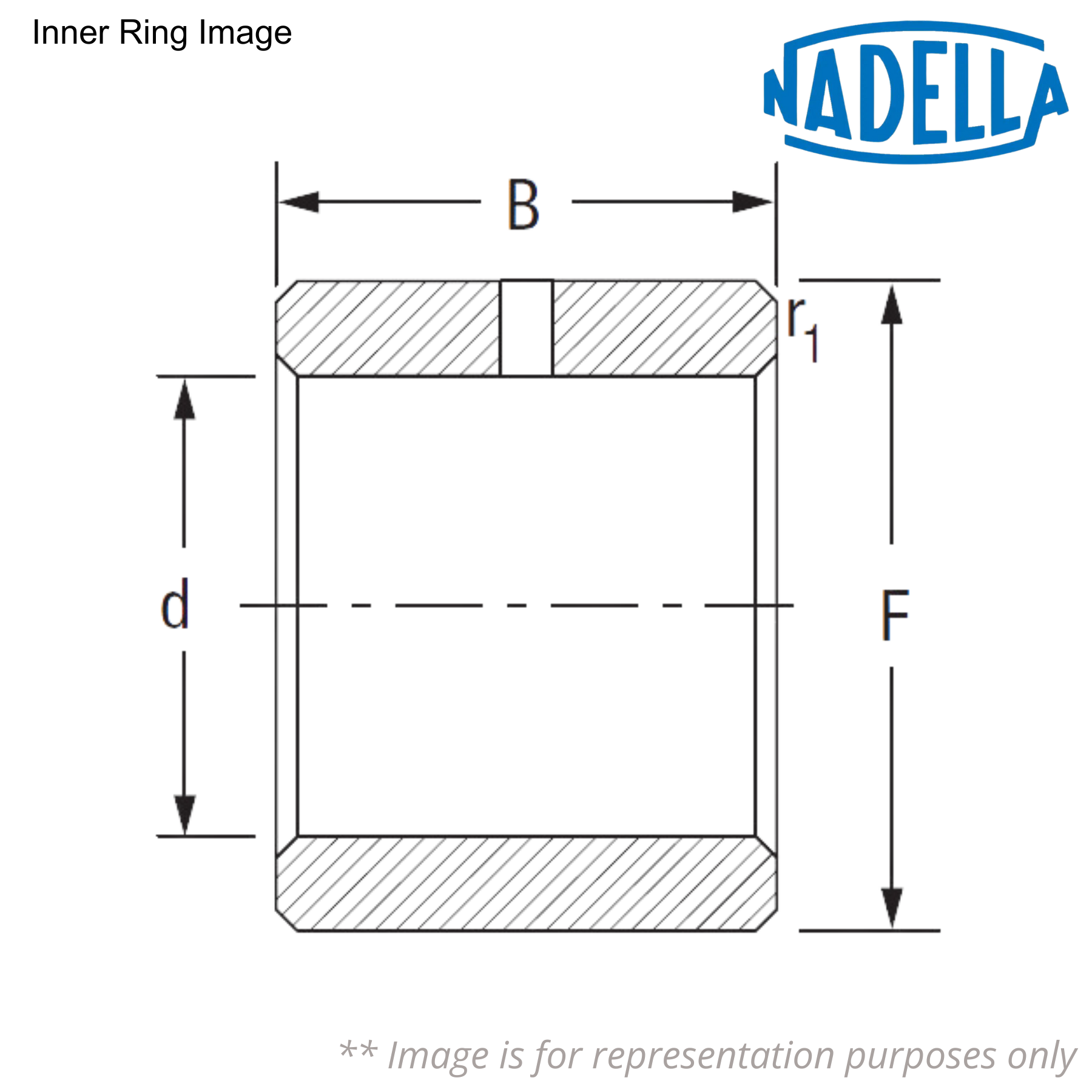

Shaft Diameter of Inner Ring (Ø) - 30 mm
Inner Ring Designation - BIC 2030
Inner Ring Dimension (F) - 38.2 mm
Inner Ring Dimension (B nom.) - 22 mm
Inner Ring Dimension (r1 min.) - 0.65 mm
Weight of Inner Ring - 74 mm
For Cam Follower Type - 11030

Description of Suffixes and Prefixes:
NA - Full Complement Needle Bearing with Inner Ring
B6 - Convex Outer Diameter

♦♦ Images are for representation purposes only
