NA11025 B6 NADELLA

Brand - NADELLA
Item Number - NA11025 B6 NADELLA
Category - Full Complement Needle Rollers with Inner Ring Also Known As - NA11025B6

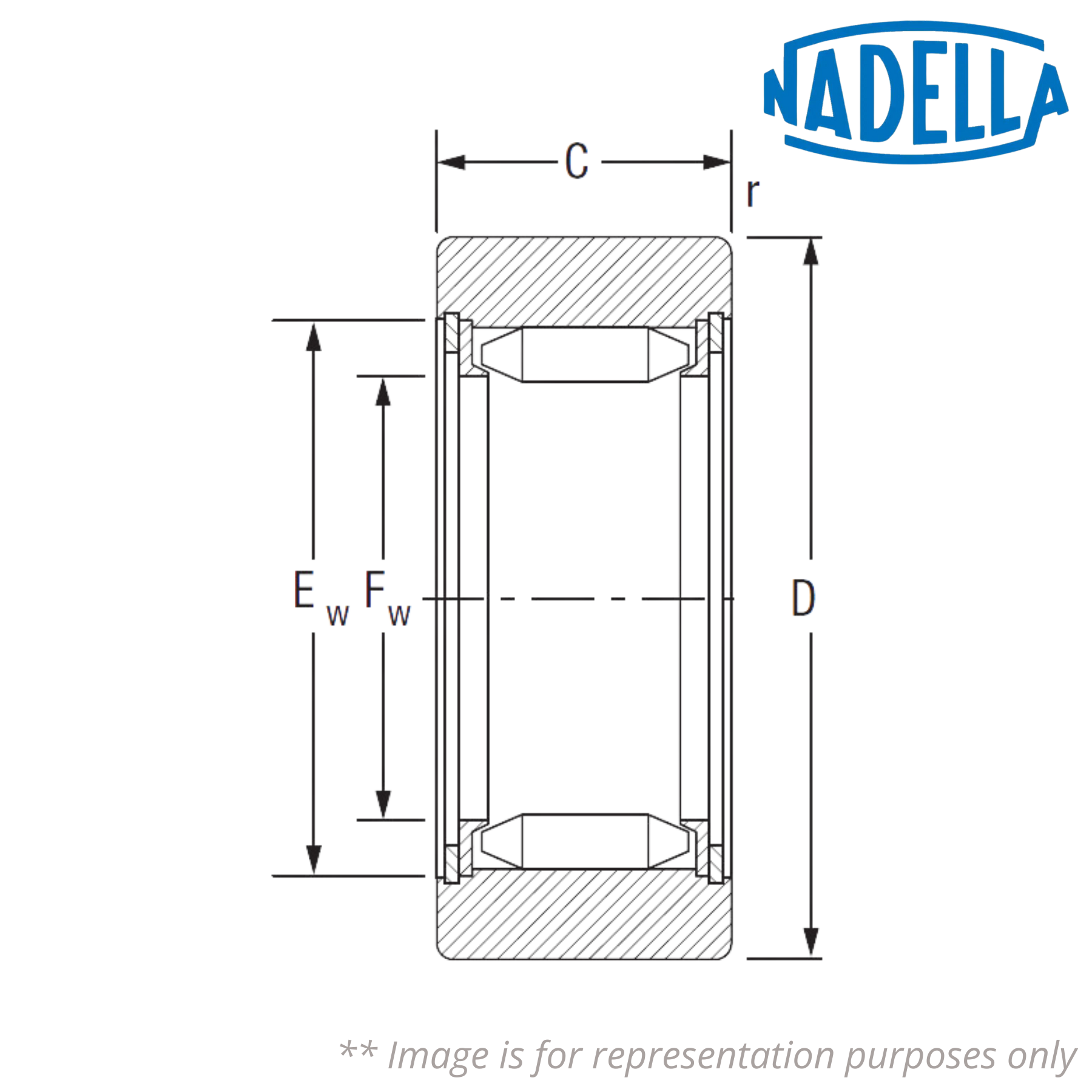

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 52 mm
Recommended Tolerance Per Fw Diameter of the Pivot without the Use of Inner Ring - 33.5 mm
Tolerances on the D Dimension - 52 mm
C nom. - 18 mm
Dimension (Ew) - 39.5 mm
Dimension (r) - 0.65 mm
Weight - 0.152 kg
Load Coefficient (Cw) - 17200 N
Dynamic Load Coefficient (Fr) - 16500 N
Static Load Coefficient (For) - 24700 N
Speed Limit with Grease - 2330 RPM

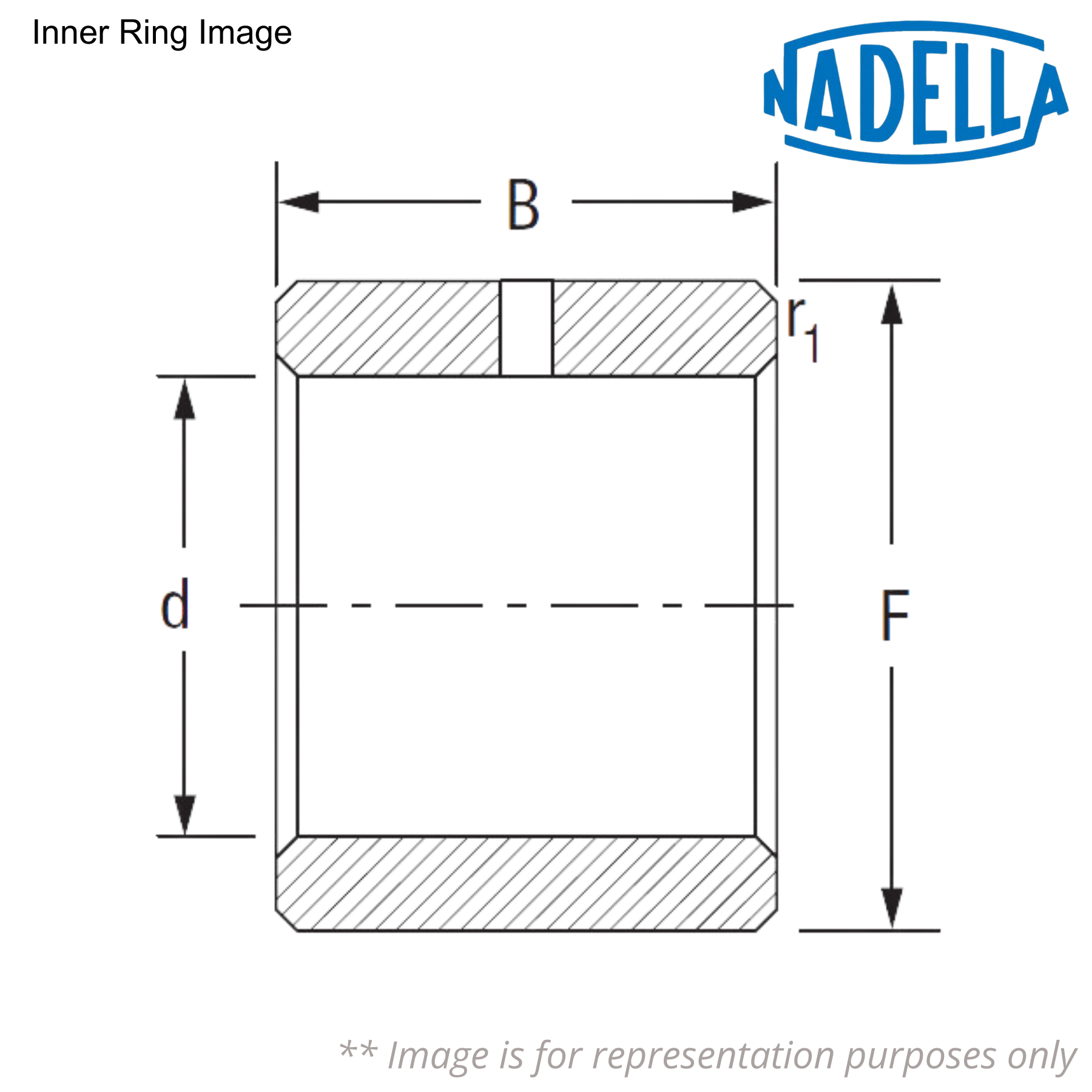

Shaft Diameter of Inner Ring (Ø) - 25 mm
Inner Ring Designation - BIC 1025
Inner Ring Dimension (F) - 33.5 mm
Inner Ring Dimension (B nom.) - 18 mm
Inner Ring Dimension (r1 min.) - 0.65 mm
Weight of Inner Ring - 54 mm
For Cam Follower Type - 11025

Description of Suffixes and Prefixes:
NA - Full Complement Needle Bearing with Inner Ring
B6 - Convex Outer Diameter

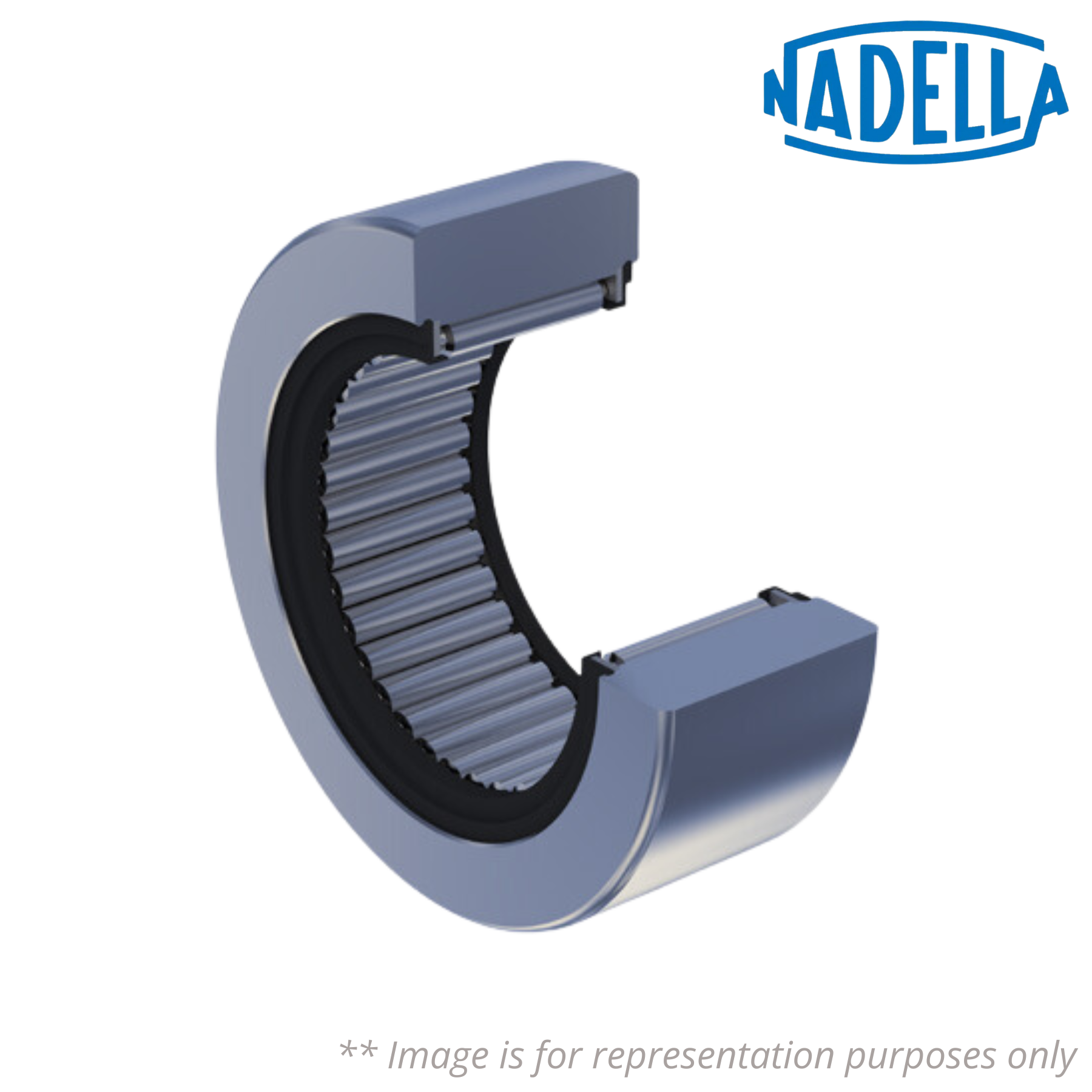

♦♦ Images are for representation purposes only
