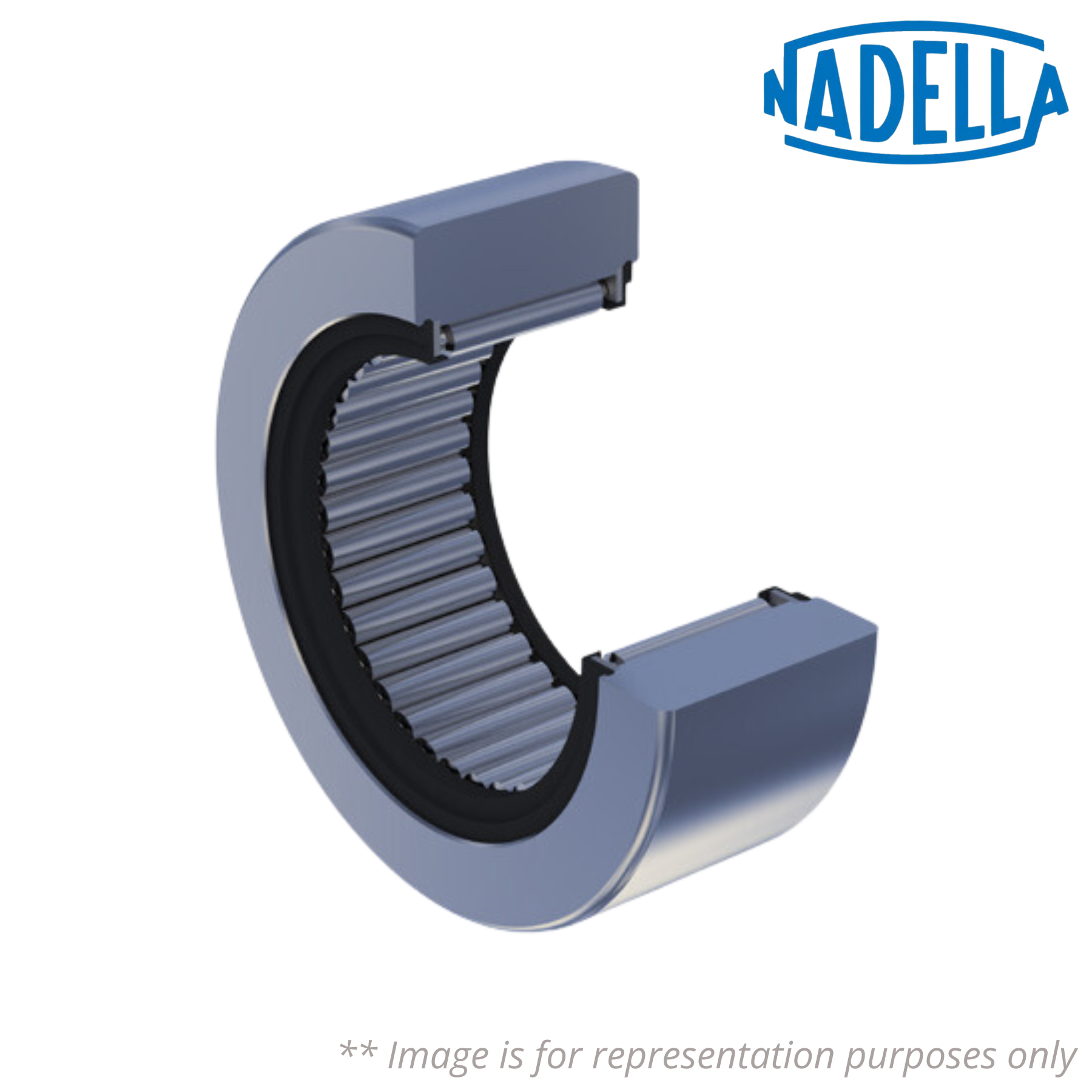

NA11020 B6 NADELLA

Brand - NADELLA
Item Number - NA11020 B6 NADELLA
Category - Full Complement Needle Rollers with Inner Ring Also Known As - NA11020B6

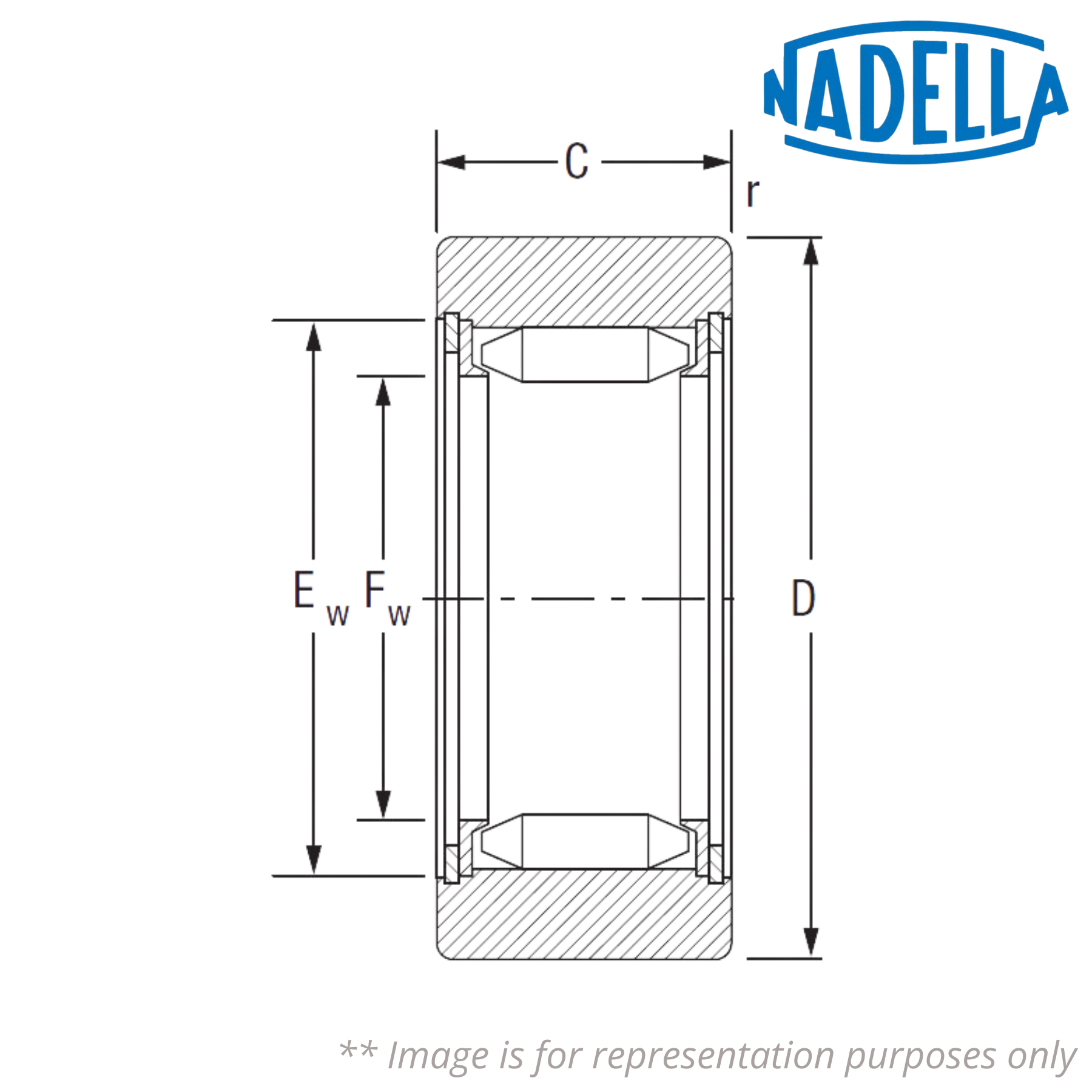

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 47 mm
Recommended Tolerance Per Fw Diameter of the Pivot without the Use of Inner Ring - 28.7 mm
Tolerances on the D Dimension - 47 mm
C nom. - 18 mm
Dimension (Ew) - 34.7 mm
Dimension (r) - 0.65 mm
Weight - 0.133 kg
Load Coefficient (Cw) - 16800 N
Dynamic Load Coefficient (Fr) - 15400 N
Static Load Coefficient (For) - 23000 N
Speed Limit with Grease - 2700 RPM

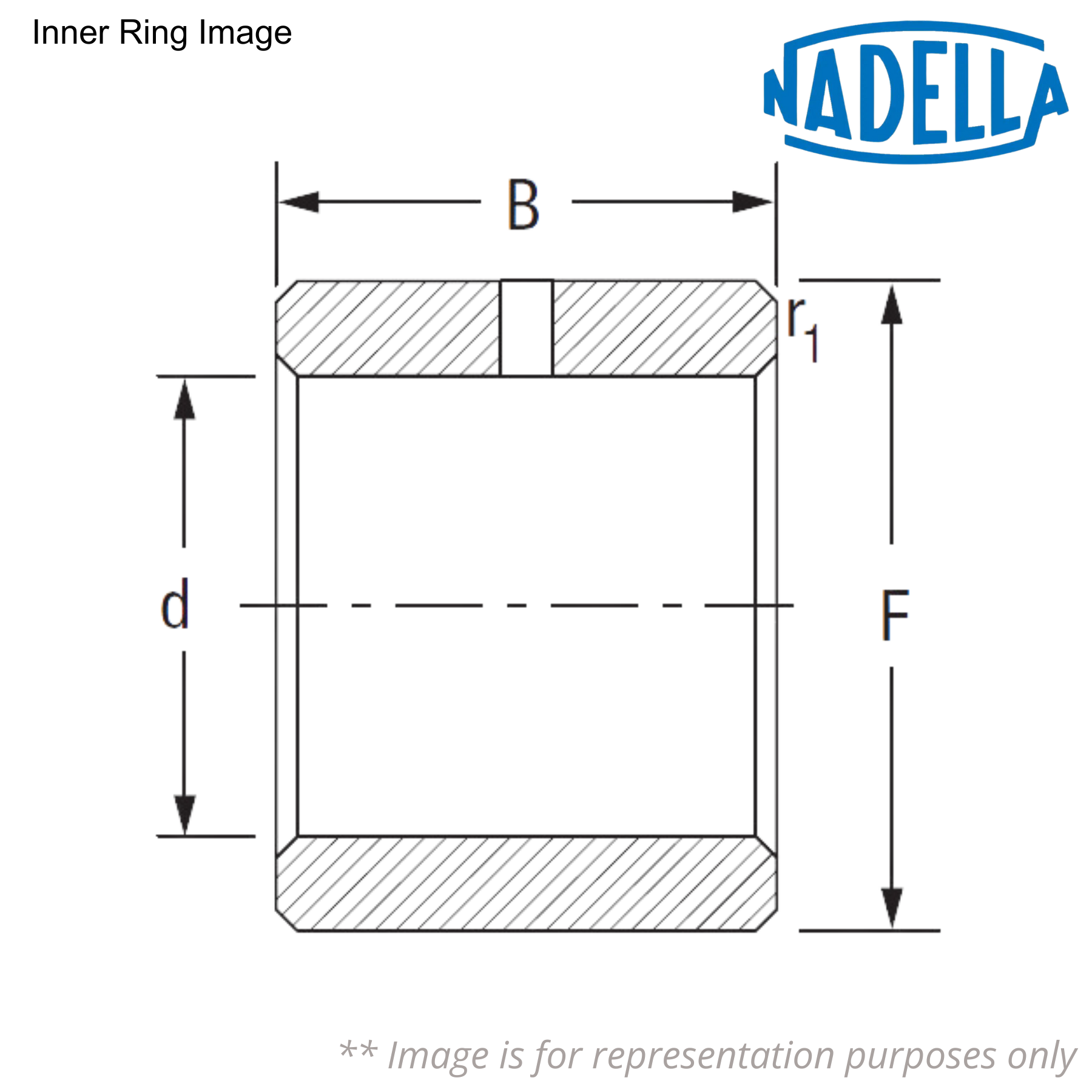

Shaft Diameter of Inner Ring (Ø) - 20 mm
Inner Ring Designation - BIC 1020
Inner Ring Dimension (F) - 28.7 mm
Inner Ring Dimension (B nom.) - 18 mm
Inner Ring Dimension (r1 min.) - 0.65 mm
Weight of Inner Ring - 46 mm
For Cam Follower Type - 11020

Description of Suffixes and Prefixes:
NA - Full Complement Needle Bearing with Inner Ring
B6 - Convex Outer Diameter
