NA11017 B6 NADELLA

Brand - NADELLA
Item Number - NA11017 B6 NADELLA
Category - Full Complement Needle Rollers with Inner Ring Also Known As - NA11017B6

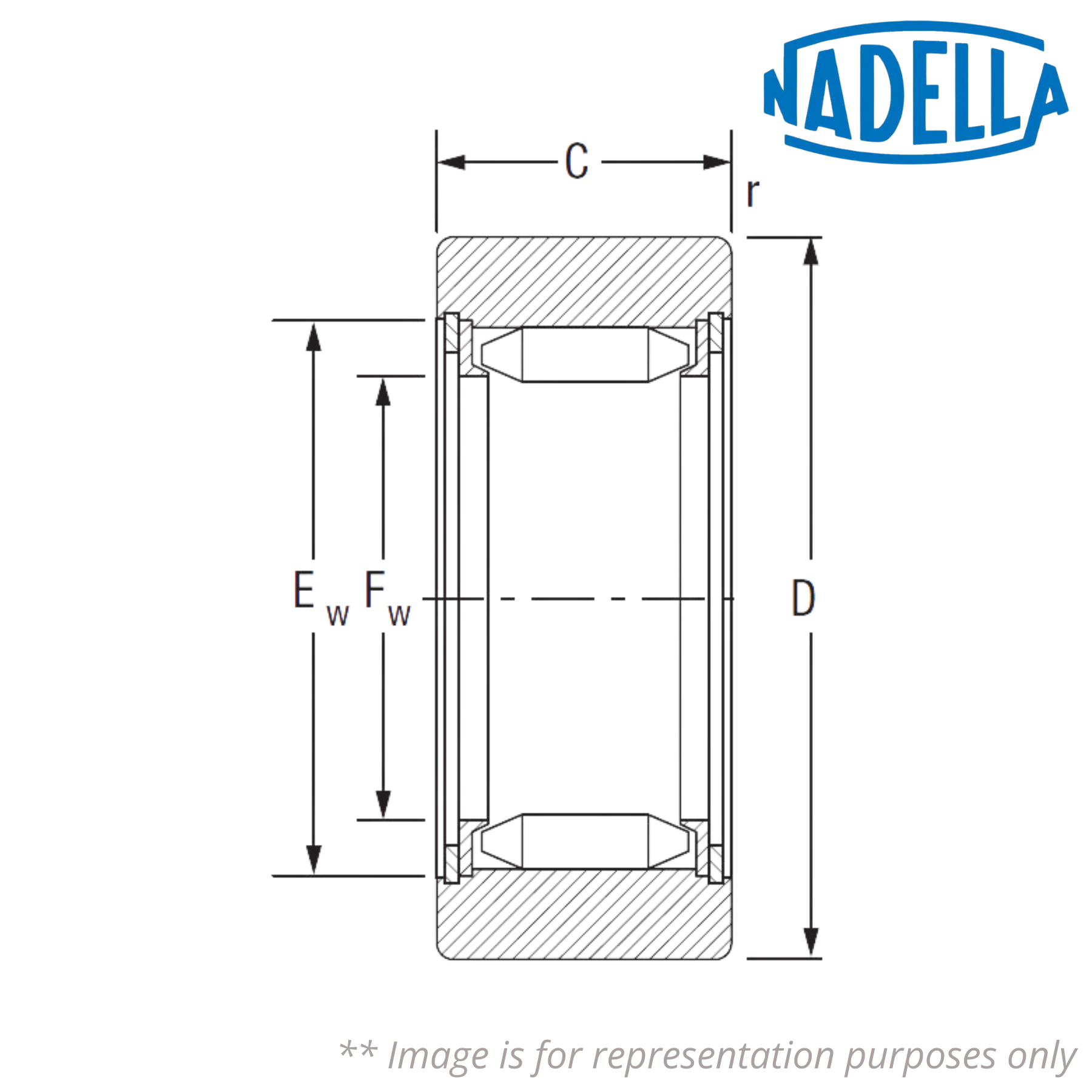

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 42 mm
Recommended Tolerance Per Fw Diameter of the Pivot without the Use of Inner Ring - 23.9 mm
Tolerances on the D Dimension - 42 mm
C nom. - 15 mm
Dimension (Ew) - 28.9 mm
Dimension (r) - 0.65 mm
Weight - 0.098 kg
Load Coefficient (Cw) - 13400 N
Dynamic Load Coefficient (Fr) - 13900 N
Static Load Coefficient (For) - 18500 N
Speed Limit with Grease - 3200 RPM

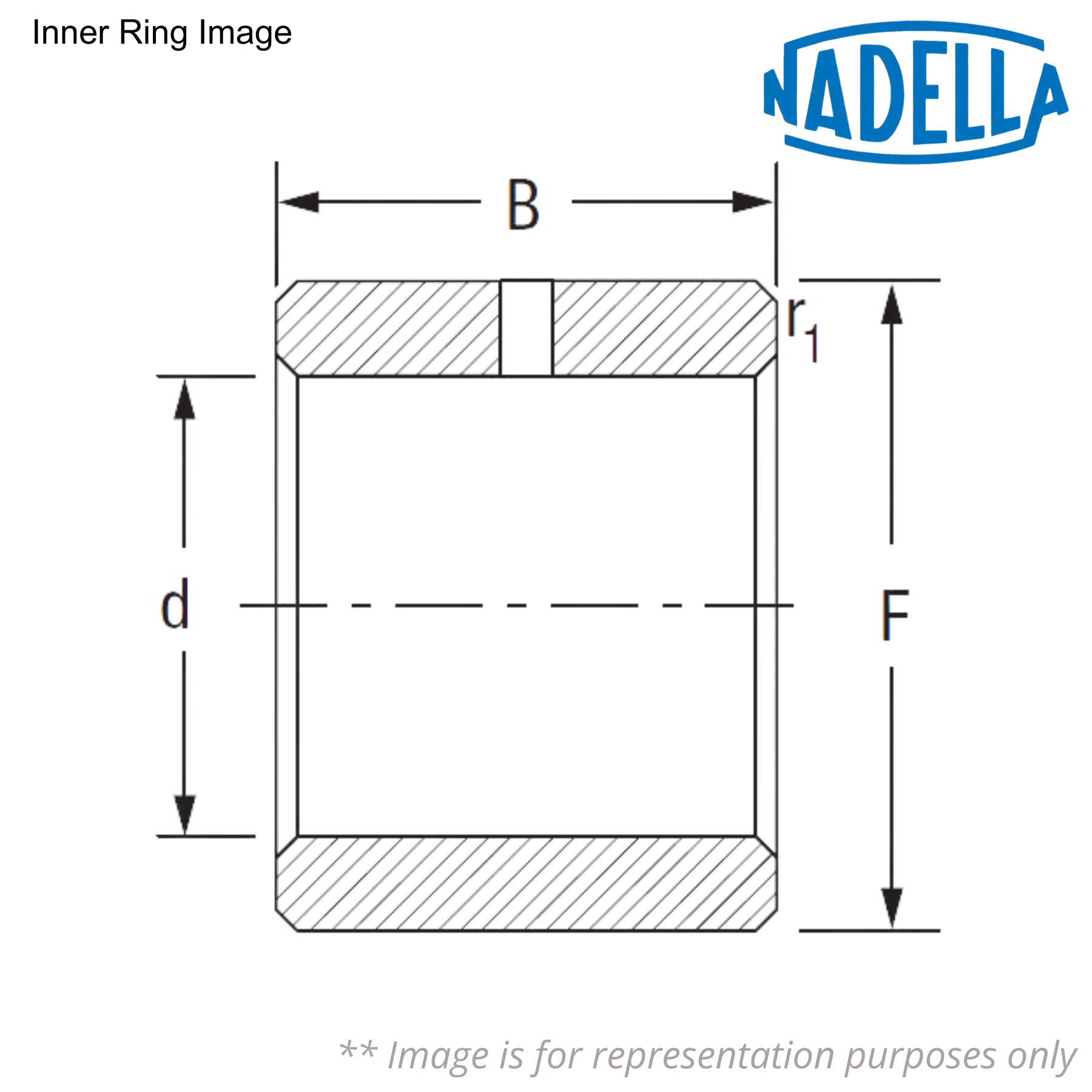

Shaft Diameter of Inner Ring (Ø) - 17 mm
Inner Ring Designation - BIC 1017
Inner Ring Dimension (F) - 23.9 mm
Inner Ring Dimension (B nom.) - 15 mm
Inner Ring Dimension (r1 min.) - 0.65 mm
Weight of Inner Ring - 26 mm
For Cam Follower Type - 11017

Description of Suffixes and Prefixes:
NA - Full Complement Needle Bearing with Inner Ring
B6 - Convex Outer Diameter

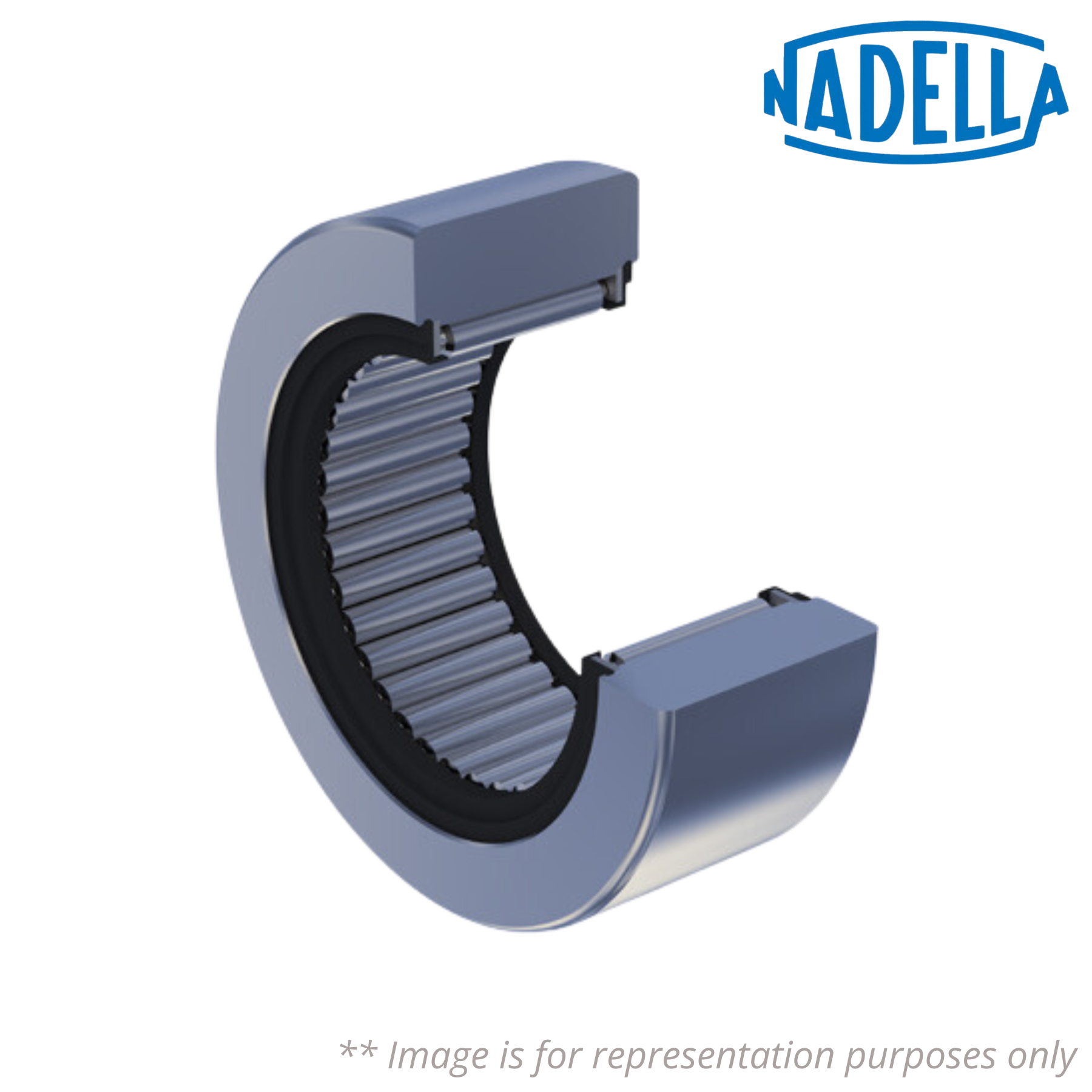

♦♦ Images are for representation purposes only
