NA070AR0 RBC

Brand - RBC
Item Number - NA070AR0*RBC
Category - Angular Contact, A-Type Thin Section Ball Bearings

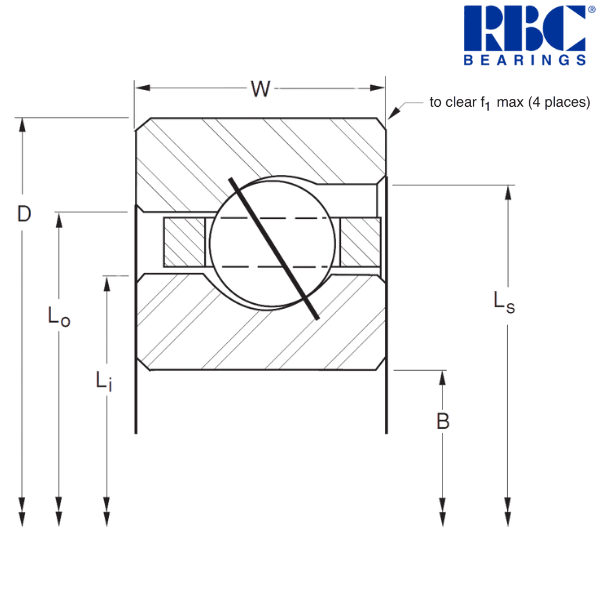

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 6.9998 inch
Outside Diameter (D) - 7.5003 inch
Width (W) - 0.25 inch
Land Diameter of Inner Ring (Li) - 7.188 inch
Land Diameter of Outer Ring (Lo) - 7.313 inch
Land Diameter of Counter Bore (Ls) - 7.375 inch
Housing Fillet (f1) - 0.025 inch
Ball Diameter - 0.125 inch
Ball Quantity - 116 pcs.
Approximate Weight - 0.31 lbs
Radial Static Load - 2540 lbf
Radial Dynamic Load - 900 lbf
Thrust Static Load - 7340 lbf
Thrust Dynamic Load - 2600 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 177.795 mm
Outside Diameter (D) - 190.508 mm
Width (W) - 6.35 mm
Land Diameter of Inner Ring (Li) - 182.58 mm
Land Diameter of Outer Ring (Lo) - 185.75 mm
Land Diameter of Counter Bore (Ls) - 187.33 mm
Housing Fillet (f1) - 0.64 mm
Approximate Weight - 0.141 kg
Radial Static Load - 11300 N
Radial Dynamic Load - 4000 N
Thrust Static Load - 32650 N
Thrust Dynamic Load - 11570 N

Description of Suffixes and Prefixes :
N - No seals or shields
A - Standard Width
A - Angular Ball Contact
R - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel with Thin Dense Chrome Coating
• Large Diameter
• Light Weight
• Small Cross Section
• Circular Pocket Ball Separator

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
