NA065XP0 RBC

Brand - RBC
Item Number - NA065XP0*RBC
Category - 4-Point Contact, X-Type Thin Section Bearing

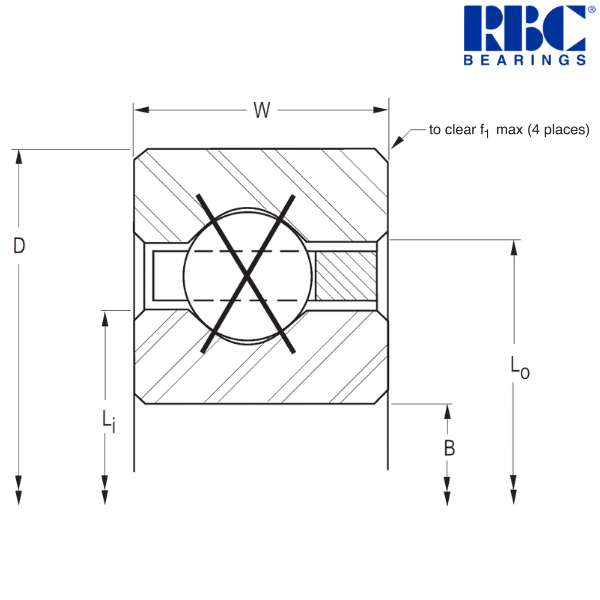

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 6.4998 inch
Outside Diameter (D) - 7.0003 inch
Width (W) - 0.25 inch
Land Diameter of Inner Ring (Li) - 6.688 inch
Land Diameter of Outer Ring (Lo) - 6.813 inch
Housing Fillet (f1) - 0.025 inch
Ball Diameter - 0.125 inch
Ball Quantity - 81 pcs.
Approximate Weight - 0.3 lbs
Radial Static Load - 2050 lbf
Radial Dynamic Load - 1001 lbf
Thrust Static Load - 5120 lbf
Thrust Dynamic Load - 1840 lbf
Moment Static Load - 6910 lbf
Moment Dynamic Load - 2535 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 165.095 mm
Outside Diameter (D) - 177.808 mm
Width (W) - 6.35 mm
Land Diameter of Inner Ring (Li) - 169.88 mm
Land Diameter of Outer Ring (Lo) - 173.05 mm
Housing Fillet (f1) - 0.64 mm
Approximate Weight - 0.136 kg
Radial Static Load - 9120 N
Radial Dynamic Load - 4450 N
Thrust Static Load - 22770 N
Thrust Dynamic Load - 8180 N
Moment Static Load - 780 Nm
Moment Dynamic Load - 290 Nm

Description of Suffixes and Prefixes :
N - No seals or shields
A - Standard Width
X - 4-Point Ball Contact
R - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel with Thin Dense Chrome Coating
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
