NA055CP0 RBC

Brand - RBC
Item Number - NA055CP0*RBC
Category - Radial Contact, C-Type Thin Section Ball Bearings

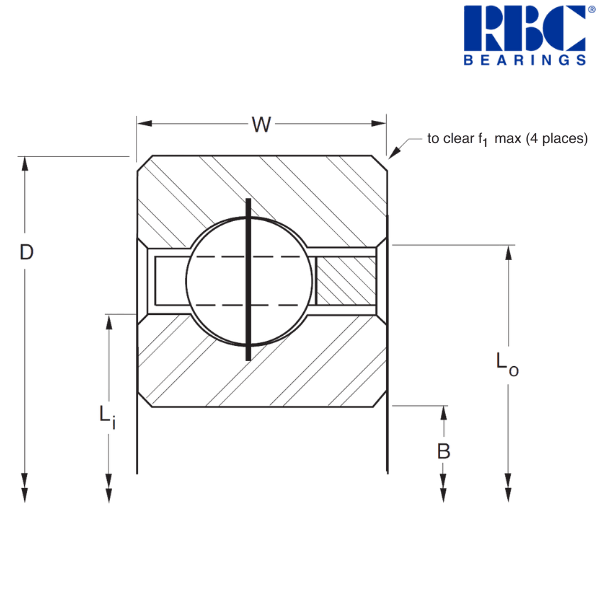

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 5.4998 inch
Outside Diameter (D) - 6.0003 inch
Width (W) - 0.25 inch
Land Diameter of Inner Ring (Li) - 5.688 inch
Land Diameter of Outer Ring (Lo) - 5.813 inch
Housing Fillet (f1) - 0.025 inch
Ball Diameter - 0.125 inch
Ball Quantity - 69 pcs.
Approximate Weight - 0.25 lbs
Radial Static Load - 1750 lbf
Radial Dynamic Load - 800 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 139.695 mm
Outside Diameter (D) - 152.408 mm
Width (W) - 6.35 mm
Land Diameter of Inner Ring (Li) - 144.48 mm
Land Diameter of Outer Ring (Lo) - 147.65 mm
Housing Fillet (f1) - 0.64 mm
Approximate Weight - 0.113 kg
Radial Static Load - 7780 N
Radial Dynamic Load - 3560 N

Description of Suffixes and Prefixes :
N - No seals or shields
A - Standard Width
C - Radial Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel with Thin Dense Chrome Coating
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
