NA040XP0 KAYDON


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - KAYDON
Item Number - NA040XP0 KAYDON
Also Known As - KDN.NA040XP0

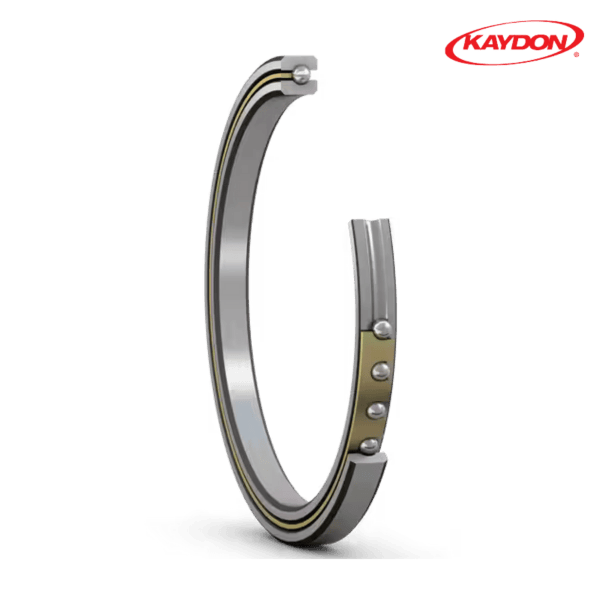

Category - Reali-Slim Thin Section Four Point Contact Ball Bearing

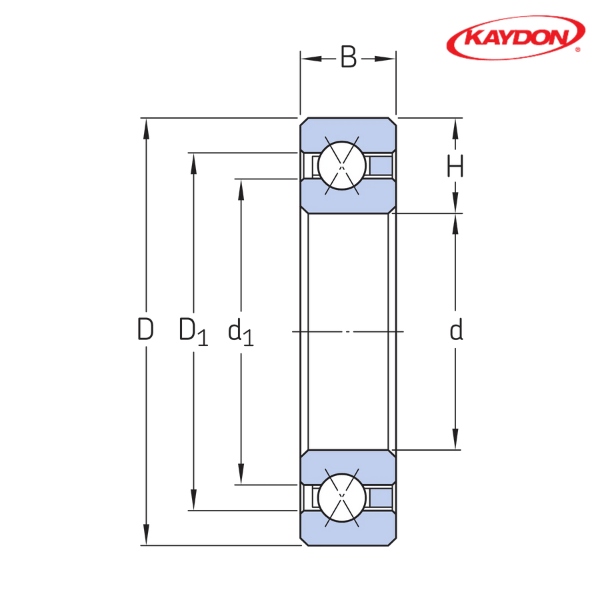

Inner Diameter (d) mm - 101.595
Outer Diameter (D) mm - 114.308
Radial Cross Section (H) mm - 6.35
Width (B) mm - 6.35
Dynamic Load Rating, Radial Direction (CK) kN - 3.36
Basic Static Load Rating, Radial Direction (C0) kN - 5.74
Basic Static Load Rating, Axial Direction (C0a) kN - 14.3
Basic Dynamic Load Rating, Moment (CM) kN·m - 0.136
Basic Static Load Rating, Moment (C0M) kN·m - 0.31
Weight (kg) - 0.086

** Images are for representation purposes only
