Description
Brand - IKO
Item Number - NA 6902 IKO
Also Known As - NA6902
Category - Machined Type Needle Roller Bearing with Inner Ring
Shaft Diameter (mm) - 15
Bore Diameter (d) mm - 15
Outer Diameter (D) mm - 28
Boundary Dimension (C) mm - 23
Minimum Boundary Dimension (rs) mm - 0.3
Boundary Dimension (Fw) mm - 20

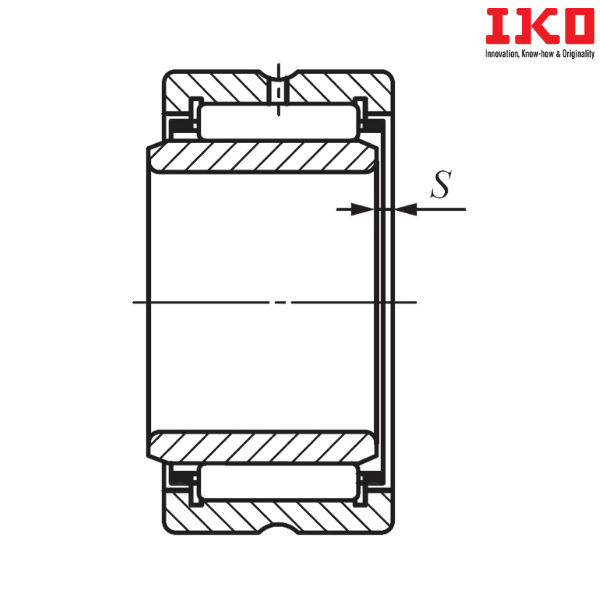

Boundary Dimension (S) mm - 0.3

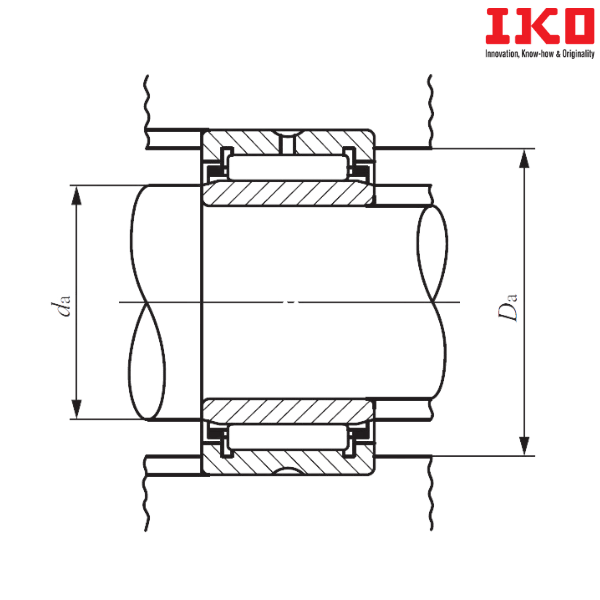

Minimum Standard Mounting Dimension (da) mm - 17
Maximum Standard Mounting Dimension (da) mm - 19
Maximum Standard Mounting Dimension (Da) mm - 26
Basic Dynamic Load Rating (C) N - 19300
Basic Static Load Rating (C0) N - 28800
Allowable Rotational Speed (min-1) - 20000
Assembled Inner Ring - LRT 152023
Weight (kg) - 0.061
** Images are for representation purposes only
